Model |
GP4-E2604-T8
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual Xeon E5-2600 (Tyan B7059) |
|
Chipset |
Intel C602 |
| CPU Socket Type |
LGA-2011 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR3 (Use in pairs, quads, Linked to processor) |
|
Maximum RAM |
768GB (24 x 32GB) |
| Expansion Slots |
|
8
x
PCI-e (3.0) x16
|
3
x
PCI-e (2.0) x1
|
|
2
x
PCI-e (3.0) x8
| |
|
| IO Ports |
2x USB 2.0 Front, 2x USB 2.0 Rear (via Dongle), 1x VGA, 2x LAN |
On-board HD
controllers |
| 2 port SATA (6Gb/s)(Intel C602) |
| 4 port SATA (3Gb/s)(Intel C602) |
|
| On-board RAID |
| 2 port SATA (6Gb/s)(RAID 0,1)(Intel C602) |
| 4 port SATA (3Gb/s)(RAID 0,1,5,10)(Intel C602) |
|
|
On-board Features |
IPMI Remote management function on one of two Gigabit LAN Ports |
| On-board LAN |
| 1 x | Intel i350 2 Port Gigabit |
|
On-board
Graphics |
ASPEED AST2300(1Head)(16MB RAM) |
| General Info |
Designed for multiple Supercomputing GPUs (up to 8 in total) Supports ultra high speed Xeon E5-2600V2 (Ivy Bridge EP) series CPUs, up to 8.0GT/s system bus. Featuring high speed 1866MHz DDR3 Ram. Arranged as high performance Quad channel. Dual channel memory mode also supported. |
| Name |

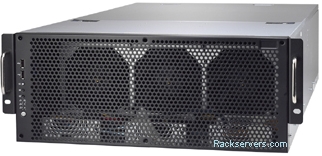

4U FT77A- GPU Optimised |
| Height |
4U, 176mm |
|
Depth |
770mm |
| Width |
438mm |
|
|
|
| Bays |
|
|
Front USB Ports |
2 |
| Drive Support |
4 port SATA (6Gb/s)/SAS2 (6Gb/s) |
|
Expansion Slots |
8 |
| Description |
4U High density GPU optimised Supercomputing chassis, Up to 8x Double Width NVIDIA Tesla GPU cards, Redundant 2400W (2+0) PSU.
|
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Maintenance |
|
|
|
|
|
|
