Model |
VX-Ci10007-X+
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Asus Prime X299-A II |
|
Chipset |
Intel X299 |
| CPU Socket Type |
FCLGA2066 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, Linked to processor) |
|
Maximum RAM |
256GB (8 x 32GB) |
| Expansion Slots |
|
3
x
PCI-e (3.0) x16
|
1
x
Intel VROC Socket
|
|
2
x
PCI-e (3.0) x1
|
3
x
M.2 Key Socket
|
|
| IO Ports |
6x USB 3.2 Rear, 3x USB 3.2 Mid-Board, 2x USB 2.0 Rear, 4x USB 2.0 Mid-Board, 1x Thunderbolt header (Mid-Board), 8 Channel Audio I/O, SPDIF Optical out, USB Flashback button |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(Intel X299) |
| 2 port M.2 Socket (PCI-e (3.0) x4)(Intel X299) |
| 1 port M.2 Socket (PCI-e (3.0) x4)(From CPU) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel X299) |
|
|
On-board Features |
UEFI Bios. |
| On-board LAN |
| 1 x | Intel i219V 1 Port Gigabit |
|
| On-board Audio |
Realtek ALC S1220A Optical SPDIF Out, 5x Audio jacks |
| General Info |
Supports 10th Gen Intel Core X-series CPUs on socket FCLGA2066. Up to 8.0 GT/s system bus. Also supported high speed 2933MHz DDR4 Ram. Arranged as high performance Quad channel. Ram overclock up to 4266MHz. 8x 6Gb/s SATA Ports with Raid 0,1,5,10. 1x Gigabit LAN port, Supports Nvidia Quad-GPU SLI & AMD Quad-GPU CrossfireX technology. |
| Name |

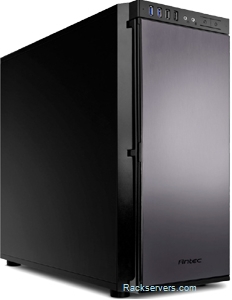

Antec Silent Mid Tower Performance P100 |
| Height |
484mm |
|
Depth |
523mm |
| Width |
220mm |
|
|
|
| Bays |
| 2 x | 5.25" External |
| 7 x | 3.5" Internal |
|
|
Front USB Ports |
2 |
| Drive Support |
7 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
7 |
| Description |
Super Mid Tower Performance P100. Advanced PC ATX chassis providing 2x 5.25" External bays, 7x Internal 3.5"/2.5" HD/SSD bays. Advanced System Cooling - system provided with 1x 120mm Front, 1x 120mm Rear, with optional fan upgrades to 2nd 120mm/140mm Front, 2x 120mm/140mm Top (see options in the 'System Option' pull down). High efficiency PSU options from 650W to 1600W. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
Optane Memory |
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Audio on board |
|
|
|
|
Audio Card |
|
|
|
|
Optical Drive |
|
|
|
|
Backup drive |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
