Model |
SX4-E1208-25
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single Xeon E3-1200V6 (X11SSM-F) |
|
Chipset |
Intel C236 |
| CPU Socket Type |
LGA-1151 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, Linked to processor) |
|
Maximum RAM |
64GB (4 x 16GB) |
| Expansion Slots |
|
1
x
PCI-e (3.0) x8 (in x16 Slot)
|
2
x
PCI-e (3.0) x4 (in x8 Slot)
|
|
1
x
PCI-e (3.0) x8
|
2
x
SATA DOM Port
|
|
| IO Ports |
5x USB 3.0 (2x Rear,3x Int), 6x USB 2.0 (2x Rear,4x Int), 2x Serial (1x Rear, 1x Int), 1x VGA, 2x SuperDOM, 3x LAN |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(Intel C236) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C236 Raid for Windows use) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i210AT 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2400/32(1Head)(32MB RAM) |
| General Info |
Supports the latest Xeon E3-1200 V6 (Kaby lake) Series CPUs, up to 8.0 GT/s system bus. Also supported high speed 2400MHz ECC DDR4 Ram. Arranged as performance Dual channel. Onboard native 8 port SATA 6Gb/s supporting Raid 0,1,5,10. |
| Name |
4U C4B-8X25 |
| Height |
4U, 178mm |
|
Depth |
450mm |
| Width |
483mm |
|
|
|
| Bays |
| 1 x | 5.25" External |
| 2 x | 3.5" Internal |
| 8 x | 2.5" Hot Swap |
|
|
Front USB Ports |
2 |
| Drive Support |
8 port SATA (3Gb/s)/SATA (6Gb/s)/SAS (3Gb/s)/SAS2 (6Gb/s) |
|
Expansion Slots |
7 |

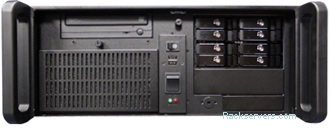

| Description |
4U Short depth (450mm) multipurpose server solution with 8x 2.5" Hot Swap drive bays. Also with 2x 3.5" Internal hdd bays and 2x 5.25" External bays. 500W High Efficiency PSU with further PSU options up to 1000W. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
SATA DOM |
|
|
|
|
SATA DOM 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Optical Drive |
|
|
|
|
Backup drive |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Server Manager |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
