Model |
XM-Ci14004-C5B
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
ASUS ProArt Z790-CREATOR WIFI |
|
Chipset |
Intel Z790 |
| CPU Socket Type |
LGA-1700 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR5 (Use in pairs, Linked to processor) |
|
Maximum RAM |
192GB (4 x 48GB) |
| Expansion Slots |
|
4
x
M.2 Key Socket
|
1
x
PCI-e (4.0) x4 (in x16 slot)
|
|
2
x
PCI-e (5.0) x16
| |
|
| IO Ports |
2x Thunderbolt 4 Ports (USB4 Compliant). 6x USB 3.2 Rear, 1x USB 3.2 Front (Type C), 1x USB 3.2 (Header, supports 2x USB 3.2), 7.1 Channel Audio I/O, HDMI, DPort, 2x LAN |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(Intel Z790) |
| 4 port M.2 Socket (PCI-e (4.0) x4)(Intel Z790) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID 0,1,10) |
| 4 port M.2 Socket (PCI-e (4.0) x4)(RAID 0,1,5,10) |
|
|
On-board Features |
WI-FI 6E, Bluetooth v5.3, HDMI Port supports 4K@60Hz, DisplayPort 1.4 (Via Thunderbolt 4) supports 8K@60Hz. |
| On-board LAN |
| 1 x | Marvell AQtion 1 Port 10GbE |
| 1 x | Intel i226-LM 1 Port 2.5GbE |
|
On-board
Graphics |
Intel Multi-Display HDMI/DisplayPort (Shared Memory with System Ram)(2Head)(0MB RAM) |
| On-board Audio |
ROG SupremeFX ALC S1220A 8 Channel, S/PDIF Digital Output |
| General Info |
Supports 14th Generation Core i5/i7/i9 series CPUs, up to 16.0 GT/s system bus. Also supported high speed 4800MHz DDR5 Ram. Arranged as high performance dual channel. RAM overclock up to 7200MHz. 8x 6Gb/s SATA Ports with Raid 0,1,5,10. 4x M.2 Socket with RAID 0,1,5,10. 1x Marvell AQtion 10GbE (RJ45) LAN & 1x 2.5Gigabit LAN. Additional CPU / System cooling options available in the 'System Option' pull down. |
| Name |

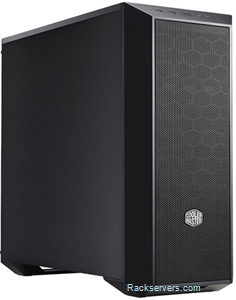

Cooler Master Mid Tower MasterBox 5 (MCY-B5S1) |
| Height |
475mm |
|
Depth |
500mm |
| Width |
220mm |
|
|
|
| Bays |
| 4 x | 5.25" External |
| 2 x | 3.5" Internal |
| 2 x | 2.5" Internal |
|
|
Front USB Ports |
2 |
| Drive Support |
4 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
7 |
| Description |
Cooler Master Mid Tower MasterBox 5 (MCY-B5S1) PC ATX chassis providing 2x 5.25" External bays (1x 5.25" External & 1x 3.5" Card Reader), plus 2x Internal 3.5" HD/SSD bays and 2x Internal 2.5" SSD bays. Advanced cooling (and support for CPU liquid cooling). System supplied with 1x 140mm Front & 1x 120mm Rear, with optional fan upgrades to 1x 120mm/140mm Top, 2nd 120mm/140mm front, see options in the 'System Option' pull down. High efficiency PSU options from 650W to 1300W. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
Optane Memory |
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Audio on board |
|
|
|
|
Audio Card |
|
|
|
|
Optical Drive |
|
|
|
|
Backup drive |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
