Model |
RS520-E8-RS8 V2
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Asus RS520-E8 |
|
Chipset |
Intel C612 |
| CPU Socket Type |
LGA-2011 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, Linked to processor) |
|
Maximum RAM |
1024GB (16 x 64GB) |
| Expansion Slots |
|
1
x
PCI-e (3.0) x8 (in x16 Slot)
|
1
x
M.2 Key Socket
|
|
2
x
PCI-e (3.0) x8
| |
|
| IO Ports |
2x USB 3.0 Rear, 2x USB 2.0 Front, 1x Serial 16550 Rear, 1x VGA Front, 1x VGA Rear, 3x RJ45 LAN Ports, 1x PS/2 KB/Mouse Port |
On-board HD
controllers |
| 9 port SATA (6Gb/s)(Intel C612) |
|
| On-board RAID |
| 9 port SATA (6Gb/s)(RAID 0,1,5,10)(i C612, RSTe) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB8 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i210AT 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2400/32(1Head)(32MB RAM) |
| General Info |
Supports high speed Xeon E5-2600 v4 series CPUs, up to 9.6 GT/s system bus. Featuring high speed DDR4 2400MHz Ram. Arranged as high performance Quad channel, populated in fours. Also supported dual channel mode, populated in pairs. |
| Name |
2U Asus R20F (RS520-E8-RS8 V2) |
| Height |
2U, 88mm |
|
Depth |
615mm |
| Width |
444mm |
|
|
|
| Bays |
| 8 x | 3.5" Hot Swap |
| 1 x | 5.25" Slim External |
|
|
Front USB Ports |
2 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
3 |
| Description |

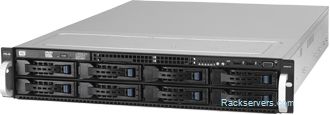

2U Asus RS520-E8-RS8 V2, 8x 3.5" Hot Swap HD/SSD Bays. 12Gb/s SAS Backplane. 1+1 Redundant 770W 80plus Platinum PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
Raid Controller |
|
|
|
|
Raid Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Optical Drive |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
