System Configurator

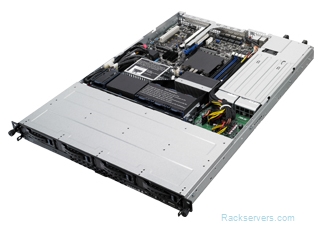

Model RS300-E9-RS4   System Ref
Intel Xeon  E3-1200V6
System FeaturesChassis Features
Motherboard Asus P10S-C/4L/SYS (RS300-E9-PS4/RS4) Chipset Intel C232
CPU Socket Type LGA-1151 Maximum CPU 1
RAM Slot Type DDR4 (Use in pairs, Linked to processor) Maximum RAM 64GB (4 x 16GB)
Expansion Slots
1 x PCI-e (3.0) x8 (in x16 Slot) 2 x M.2 Key Socket
1 x PCI-e (3.0) x8
IO Ports 2x USB 3.0 Front, 2x USB 3.0 & 2x USB 2.0 Rear, 1x VGA Front, 1x VGA Rear, 5x RJ45 LAN Ports (5th LAN for optional IPMI ASMB8-iKVM), 1x PS/2 KB/Mouse Port, 1x Serial 16550 Rear.
On-board HD
controllers
6 port SATA (6Gb/s)(Intel C232)
On-board RAID
6 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C232 RSTe)
On-board Features Supports IPMI V2.0 & KVM over LAN via optional ASMB8-iKVM (see IPMI options).
On-board LAN
4 xIntel i210AT 1 Port Gigabit
On-board
Graphics
ASpeed AST2400/32(1Head)(32MB RAM)
General Info Supports the latest Xeon E3-1200 V6 (Kaby Lake) Series CPUs, up to 8.0 GT/s system bus. Also supported high speed 2400MHz ECC DDR4 Ram. Arranged as performance Dual channel. Onboard native 6 port SATA 6Gb/s supporting Raid 0,1,5,10.
    Qty.
Processor
RAM
  16GB RAM (Total), 16GB for CPU1
RAID on board
Internal RAID
Internal HD/SSD
Internal HD/SSD2
Internal HD/SSD3
Raid Controller
Raid Controller 2
RAID Option
RAID Option 2
H'Swap HD/SSD
H'Swap HD/SSD2
H'Swap HD/SSD3
SAS/PCI-e Card
PCI-e SSD
PCI-e SSD 2
M.2 SSD
M.2 SSD 2
Graphics on board
Graphics/GPU
Graphics/GPU 2
LAN on board
LAN Controller
LAN Controller 2
IPMI
Optical Drive
PSU
Chassis Colour
Mouse
Monitor
Keyboard
Rail Kit
Extra Peripheral
Operating System
OS Version
Software
Software 2
Software 3
Maintenance


Active Expansion Counter


Available Slots Remaining
PCI-e (3.0) x8 (in x16 Slot)x 1
PCI-e (3.0) x8x 1
M.2 Key Socket x 2

Available HD Bays Remaining
3.5" Hot Swapx 3
2.5" Internalx 2

Unit Price
£1,228 ex VAT
System Quantity:
