Model |
R182-Z91
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual AMD EPYC - R182-Z91 (MZ92-FS0 Rev. 3.0) |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP3 LGA |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
4096GB (32 x 128GB) |
| Expansion Slots |
|
1
x
M.2 Key Socket
|
1
x
OCP Mezzanine (PCI-e 4.0 x16)
|
|
2
x
PCI-e (4.0) x16
|
1
x
OCP Mezzanine (PCI-e 3.0 x8)
|
|
| IO Ports |
2x USB 3.0 Rear, 1x USB 3.0 Internal (header), 1x USB 3.0 Front, 1x COM Header, 1x VGA, 2x LAN (1GBit), 1x LAN (IPMI), 1x TPM Header |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(AMD SoC) |
| 2 port NVMe (PCI-e 4.0)(AMD SoC) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
| 2 port NVMe (PCI-e 4.0)(RAID N/A - JBOD Mode only) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management with Dedicated LAN (ASpeed AST2500 BMC). Supports virtual media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i350-AM2 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Supports two AMD EPYC 7003 series processors. System featuring high speed DDR4 3200MHz RAM (Registered ECC and LR DIMM). Arranged as high performance Eight channel, populated in eights per processor. Also supported quad channel mode, populated in fours. System with integrated 2x Gigabit (Intel i350-AT2) RJ45 LAN ports. |
| Name |

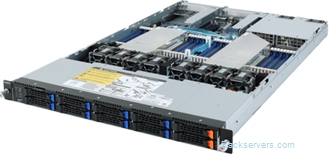

1U R182-Z91, AMD EPYC 7003, 10x 2.5" Hot Swap (2x bays as NVMe) |
| Height |
1U, 44mm |
|
Depth |
730mm |
| Width |
438mm |
|
|
|
| Bays |
| 10 x | 2.5" Hot Swap (2 bays NVMe ready) |
|
|
Front USB Ports |
2 |
| Drive Support |
10 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0)/NVMe (PCI-e 4.0) |
|
Expansion Slots |
2 |
| Description |
1U AMD EPYC Server Chassis, 10x 2.5" Hot Swap bays (2x bays as NVMe), 2x PCI-e (FH) slots, 2x OCP Mezzanine slots, 2x 1200W (Platinum) Redundant PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
256GB RAM (Total), 256GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Optical Drive |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
