Model |
ESC8000 G4
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Asus ESC8000 G4 |
|
Chipset |
Intel C621 |
| CPU Socket Type |
LGA-3647 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, triples, quads, sixes, Linked to processor) |
|
Maximum RAM |
3072GB (24 x 128GB) |
| Expansion Slots |
|
8
x
PCI-e (3.0) x16
|
2
x
M.2 Key Socket
|
|
2
x
PCI-e (3.0) x16
(LP)
| |
|
| IO Ports |
Front I/O: 2x USB 2.0 Ports, 1x VGA, 1x COM. Rear I/O: 2x LAN, 1x LAN (IPMI) |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(Intel C621) |
| 2 port M.2 Socket (PCI-e (3.0) x4)(Intel C621) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C621) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB9 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i350 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Supports the latest Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 10.4 GT/s UPI system bus. Featuring high speed DDR4 2666MHz Ram. Arranged as high performance six channel mode, populated in sixes. Also supported quad channel mode, populated in fours. |
| Name |
Asus ESC8000 G4 8x GPU |
| Height |
4U, 176mm |
|
Depth |
798mm |
| Width |
439mm |
|
|
|
| Bays |
|
|
Front USB Ports |
2 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
10 |
| Description |

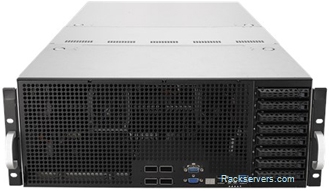

4U Asus ESC8000 G4 GPU solution. Supports up to 8x GPU adapters and 8x Hot Swap 2.5" HDDs. Chassis with 2+1 Redundant 80plus (Platinum) 1600W PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
