Model |
GP4-XES04-10T8
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual Xeon Scalable (Tyan B7109) + 2x 10GbE |
|
Chipset |
Intel C621 |
| CPU Socket Type |
LGA-3647 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, triples, sixes, Linked to processor) |
|
Maximum RAM |
3072GB (24 x 128GB) |
| Expansion Slots |
|
2
x
OCP Mezzanine (PCI-e 3.0 x8)
|
9
x
PCI-e (3.0) x16
|
|
| IO Ports |
2x USB 3.0 Ports (Front), 1x DB-9 COM Port (Front), 1x VGA, 2x LAN, 1x LAN (IPMI) |
On-board HD
controllers |
| 4 port SATA (6Gb/s)(Intel C612) |
|
| On-board RAID |
| 4 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C612 RSTe) |
|
|
On-board Features |
IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub, AST2500 iKVM |
| On-board LAN |
| 2 x | Intel X550 (10GBaseT) 1 Port 10GbE |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for multiple Supercomputing GPUs (up to 8 in total) Supports ultra high speed Xeon Scalable series CPUs, up to 10.4GT/s UPI. Featuring high speed 2666MHz DDR4 Ram. Arranged as high performance Six channel. Triple and Dual channel memory mode also supported. Integrated 2x 10GbE (Intel X550-AT2) 10GBaseT LAN. |
| Name |

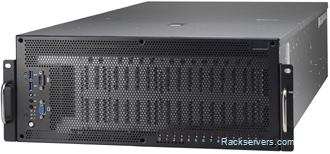

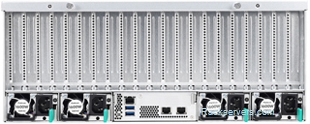

4U FT77D - GPU Optimised |
| Height |
4U, 176mm |
|
Depth |
770mm |
| Width |
438mm |
|
|
|
| Bays |
|
|
Front USB Ports |
0 |
| Drive Support |
4 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
8 |
| Description |
4U High density GPU optimised Supercomputing chassis, Up to 8x Double Width NVIDIA Tesla / Grid GPU cards, Redundant 3200W (2+1) PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Server Manager |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
