Model |
XRG-X2206-A5
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Asus WS C422 SAGE/10G |
|
Chipset |
Intel C422 |
| CPU Socket Type |
FCLGA2066 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, Linked to processor) |
|
Maximum RAM |
512GB (8 x 64GB) |
| Expansion Slots |
|
7
x
PCI-e (3.0) x16
|
2
x
U.2 Port
|
|
2
x
M.2 Key Socket
| |
|
| IO Ports |
9x USB 3.1 (6x Rear, [1x Type A, 1x Type C], 3x Mid Board, 1x Front), 8 Channel Audio I/O, SPDIF Optical out, USB Flashback button |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(Intel C422) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C422) |
|
|
On-board Features |
n/a |
| On-board LAN |
| 2 x | Intel X550 (10GBaseT) 1 Port 10GbE |
|
| On-board Audio |
ROG SupremeFX ALC S1220A 8 Channel, S/PDIF Digital Output |
| General Info |
Asus WS C422 SAGE/10G motherboard. Supports single Xeon W-2100 series CPUs. Also supported 8x high speed 2666MHz DDR4 RDIMMS. Arranged as high performance Quad channel. 8x 6Gb/s SATA Ports with Raid 0,1,5,10. 2x 10GbE 10GBaseT LAN ports, Supports Nvidia Quad-GPU SLI & AMD 4-Way GPU CrossfireX technology. 2x M.2 Sockets, Optane Memory support via M.2. Additional CPU / System cooling options plus Speaker options available in the 'System Option' pull down. |
| Name |

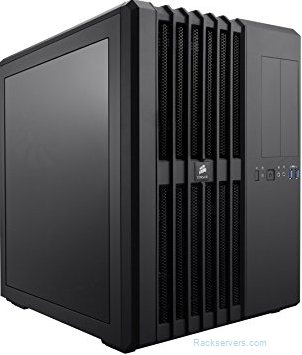

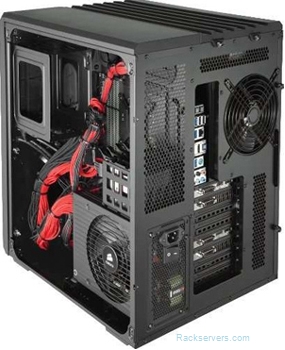

Corsair Carbide Air 540 Cube GPU Tower |
| Height |
458mm |
|
Depth |
415mm |
| Width |
332mm |
|
|
|
| Bays |
| 2 x | 3.5" Internal |
| 4 x | 2.5" Internal |
|
|
Front USB Ports |
2 |
| Drive Support |
6 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0) |
|
Expansion Slots |
8 |
| Description |
Cube Tower Solution supporting up to 4x GPU adapters. High air flow for advanced cooling, including water cooling. PSU options from 650W to 1600W. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Audio on board |
|
|
|
|
Audio Card |
|
|
|
|
Optical Drive |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
