Model |
ESC4000 G4S/NV
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Asus ESC4000 G4S, 2x NVMe, 4x GPU Optimised |
|
Chipset |
Intel C621 |
| CPU Socket Type |
LGA-3647 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, triples, quads, sixes, Linked to processor) |
|
Maximum RAM |
2048GB (16 x 128GB) |
| Expansion Slots |
|
8
x
PCI-e (3.0) x16
|
1
x
PCI-e (3.0) x8 (Internal)
(LP)
|
|
1
x
PCI-e (3.0) x16
(LP)
|
1
x
M.2 Key Socket
|
|
1
x
PCI-e (3.0) x8
(LP)
|
1
x
Intel VROC Socket
|
|
| IO Ports |
Front Ports: 2x USB 3.0, Rear Ports: 2x USB 3.0, 1x VGA, 2x LAN RJ45, 1x IPMI LAN. |
On-board HD
controllers |
| 6 port SATA (6Gb/s)(Intel C621) |
| 2 port NVMe (PCI-e 3.0)(Intel C621) |
| 1 port M.2 Socket (PCI-e (3.0) x4)(Intel C621) |
|
| On-board RAID |
| 6 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C621) |
| 2 port NVMe (PCI-e 3.0)(RAID N/A - JBOD Mode only)(Intel C621) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB8 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i350-AM2 1 Port Gigabit |
|
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Also supported nVidia Geforce GTX & RTX and Radeon RX. Supports high speed Xeon Scalable Series CPUs, up to 10.4 GT/s system bus. Featuring high speed DDR4 2666MHz Ram. Arranged as high performance Six channel, populated in sixes. Also supported quad channel mode, populated in fours. Two NVMe ports & hot swap bays enabled in this configuration. |
| Name |

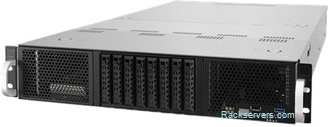

2U Asus ESC4000 G4S / 2x NVMe, 4x GPU |
| Height |
2U, 88mm |
|
Depth |
800mm |
| Width |
440mm |
|
|
|
| Bays |
| 6 x | 2.5" Hot Swap |
| 2 x | 2.5" NVMe Hot Swap |
|
|
Front USB Ports |
2 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0) |
|
Expansion Slots |
10 |
| Description |
2U Asus ESC4000 G4S GPU solution. Supports up to 4x GPU adapters and 8x Hot Swap 2.5" HDDs (2x Bays as NVMe). Chassis with 1+1 Redundant 80plus (Platinum) 1600W PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
