System Configurator

Model   System Ref
Intel Xeon Scalable
System FeaturesChassis Features

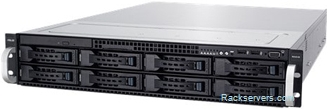

Motherboard Dual Xeon Scalable Bronze/Silver/Gold/Platinum (RS520-E9-RS8) Chipset Intel C621
CPU Socket Type LGA-3647 Maximum CPU 2
RAM Slot Type DDR4 (Use in pairs, triples, quads, sixes, Linked to processor) Maximum RAM 2048GB (16 x 128GB)
Expansion Slots
2 x PCI-e (3.0) x16 (LP) 2 x M.2 Key Socket
4 x PCI-e (3.0) x8 (LP) 1 x Intel VROC Socket
1 x OCP Mezzanine (PCI-e 3.0 x16)
IO Ports 2x USB 3.0 Rear, 2x USB 2.0 Front, 1x VGA Front, 1x VGA Rear, 2x LAN, 1x LAN (IPMI)
On-board HD
controllers
11 port SATA (6Gb/s)(Intel C621)
2 port M.2 Socket(Intel C621)
4 port NVMe (8Gb/s)(Intel C621)
On-board RAID
11 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C621)
On-board Features Integrated IPMI 2.0 Remote Management (ASMB9-iKVM) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN.
On-board LAN
2 xIntel i350-AM2 1 Port Gigabit
On-board
Graphics
ASpeed AST2500/64(1Head)(64MB RAM)
General Info Supports the latest Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 10.4 GT/s system bus. Featuring high speed DDR4 2666MHz Ram. Arranged as high performance six channel mode populated in sixes and quad channel mode, populated in fours. Also supported dual channel mode, populated in pairs. System with integrated dual Gigabit i350-BT2 LAN ports.
    Qty.
Processor
RAM

RAID on board
Internal RAID
Internal HD/SSD
Internal HD/SSD2
Internal HD/SSD3
Raid Controller
Raid Controller 2
RAID Option
RAID Option 2
H'Swap HD/SSD
H'Swap HD/SSD2
H'Swap HD/SSD3
SAS/PCI-e Card
PCI-e SSD
PCI-e SSD 2
Graphics on board
Graphics/GPU
Graphics/GPU 2
LAN on board
LAN Controller
LAN Controller 2
NAS/iSCSI/SAN
Optical Drive
PSU
Chassis Colour
Mouse
Monitor


Active Expansion Counter


Available Slots Remaining
PCI-e (3.0) x16(LP)x 2
PCI-e (3.0) x8(LP)x 4
OCP Mezzanine (PCI-e 3.0 x16)x 1
M.2 Key Socket x 2
Intel VROC Socketx 1

Available HD Bays Remaining
3.5" Hot Swapx 3
2.5" Hot Swap (Internal Raid)x 2
3.5"/2.5" NVMe Hot Swapx 4

Unit Price
£2,105 ex VAT
System Quantity:
