Model |
RS720-E9-RS8
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual Xeon Scalable Bronze/Silver/Gold/Platinum (RS720-E9-RS8) |
|
Chipset |
Intel C621 |
| CPU Socket Type |
LGA-3647 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, triples, quads, sixes, Linked to processor) |
|
Maximum RAM |
3072GB (24 x 128GB) |
| Expansion Slots |
|
1
x
PCI-e (3.0) x16
(LP)
|
1
x
MicroSD Slot
|
|
1
x
PCI-e (3.0) x8 (in x16 Slot)
|
1
x
Intel VROC Socket
|
|
1
x
OCP (PCI-e 3.0 x16)
|
3
x
PCI-e (3.0) x16
|
|
2
x
M.2 Socket
| |
|
| IO Ports |
2x USB 3.0 Rear, 2x USB 2.0 Front, 1x VGA Front, 1x VGA Rear, 2x LAN, 1x LAN (IPMI) |
On-board HD
controllers |
| 9 port SATA (6Gb/s)(Intel C621) |
| 2 port M.2 NVMe(Intel C621) |
|
| On-board RAID |
| 9 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C621) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB9-iKVM) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel X722 1 Port 10GbE |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Supports the latest Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 10.4 GT/s system bus. Featuring high speed DDR4 2666MHz Ram. Arranged as high performance six channel mode populated in sixes and quad channel mode, populated in fours. Also supported dual channel mode, populated in pairs. System with integrated dual Intel X722 10GbE (SFP+) LAN ports. |
| Name |

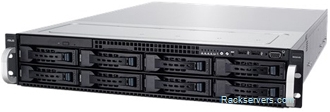

2U Asus RS720-E9-RS8, with NVMe |
| Height |
2U, 88mm |
|
Depth |
750mm |
| Width |
444mm |
|
|
|
| Bays |
| 4 x | 3.5" Hot Swap |
| 4 x | 3.5"/2.5" NVMe (+SATA/SAS) Hot Swap |
| 2 x | 2.5" Hot Swap (Rear) |
|
|
Front USB Ports |
2 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0) |
|
Expansion Slots |
8 |
| Description |
2U Asus RS720-E9-RS8, 8x 3.5" Hot Swap HD/SSD Bays (4x Bays as NVMe). 12Gbs SAS3 Backplane. 7x PCI-e FH & 1x PCI-e LP, 1+1 Redundant 850W 80plus Titanium PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
NAS/iSCSI/SAN |
|
|
|
|
Optical Drive |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
