Model |
RS520-E9-RS12-E
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual Xeon Scalable Bronze/Silver/Gold/Platinum (RS520-E9-RS12-E) |
|
Chipset |
Intel C621 |
| CPU Socket Type |
LGA-3647 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, triples, quads, sixes, Linked to processor) |
|
Maximum RAM |
2048GB (16 x 128GB) |
| Expansion Slots |
|
2
x
PCI-e (3.0) x16
(LP)
|
2
x
M.2 Key Socket
|
|
4
x
PCI-e (3.0) x8
(LP)
|
1
x
Intel VROC Socket
|
|
1
x
OCP Mezzanine (PCI-e 3.0 x16)
| |
|
| IO Ports |
2x USB 3.0 Rear, 2x USB 2.0 Front, 1x VGA Front, 1x VGA Rear, 2x LAN, 1x LAN (IPMI) |
On-board HD
controllers |
| 11 port SATA (6Gb/s)(Intel C621) |
|
| On-board RAID |
| 11 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C621) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB9-iKVM) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i350-AM2 1 Port Gigabit |
|
| General Info |
Supports the latest Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 10.4 GT/s system bus. Featuring high speed DDR4 2666MHz Ram. Arranged as high performance six channel mode populated in sixes and quad channel mode, populated in fours. Also supported dual channel mode, populated in pairs. System with integrated dual Gigabit i350-BT2 LAN ports. |
| Name |

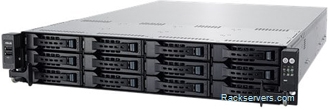

2U Asus RS520-E9-RS12-E, with NVMe |
| Height |
2U, 88mm |
|
Depth |
615mm |
| Width |
444mm |
|
|
|
| Bays |
| 8 x | 3.5" Hot Swap |
| 2 x | 2.5" Hot Swap (O/S Rear) |
| 4 x | 3.5"/2.5" NVMe (+SATA/SAS) Hot Swap |
|
|
Front USB Ports |
0 |
| Drive Support |
12 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0) |
|
Expansion Slots |
6 |
| Description |
2U Asus RS520-E9-RS12-E, 12x 3.5" Hot Swap HD/SSD Bays (4x Bays as NVMe). 12Gbs SAS3 Backplane. 2x Rear 2.5" Hot Swap bays, 6x PCI-e LP Slots, 1+1 Redundant 800W 80plus Platinum PSU. |
|
|
|
