Model |
AR-3005X-CO+
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Asus PRIME X570-PRO |
|
Chipset |
AMD X570 |
| CPU Socket Type |
AM4 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, Linked to processor) |
|
Maximum RAM |
64GB (4 x 16GB) |
| Expansion Slots |
|
2
x
M.2 Key Socket
|
1
x
PCI-e (4.0) x4 (in x16 slot)
|
|
2
x
PCI-e (4.0) x16
|
3
x
PCI-e (4.0) x1
|
|
| IO Ports |
4x USB 3.2 (Gen 1) Rear, 4x USB 3.2 (Gen 2) Rear, 2x USB 2.0 Mid-board, 1x USB 3.2 (Gen 1) Mid-board, 1x USB 3.2 (Gen 2) Mid-board, 1x DisplayPort, HDMI, 1x LAN, 5x Audio Jacks, 1x SPDIF out |
On-board HD
controllers |
| 6 port SATA (6Gb/s)(AMD X570) |
|
| On-board RAID |
| 6 port SATA (6Gb/s)(RAID 0,1,10)(AMD X570) |
|
|
On-board Features |
HDMI up to 4096x2160@60Hz / 2560x1600@60Hz, DisplayPort up to 4096x2160@60Hz. |
| On-board LAN |
| 1 x | Intel i211-AT 1 Port Gigabit |
|
On-board
Graphics |
Intel Multi-Display HDMI/DisplayPort (Shared Memory with System Ram)(2Head)(0MB RAM) |
| On-board Audio |
ROG SupremeFX ALC S1220A 8 Channel, S/PDIF Digital Output |
| General Info |
Asus Prime X570-Pro motherboard supports AMD Ryzen 3rd Gen processors. Also supported high speed 3200MHz DDR4 Ram. Arranged as Dual channel mode. Ram overclock up to 3600MHz. 6x 6Gb/s SATA Ports with Raid 0,1,10. 1x Gigabit LAN port, 2x M.2 Socket, additional CPU / System cooling options plus Speaker options available in the 'System Option' pull down. |
| Name |

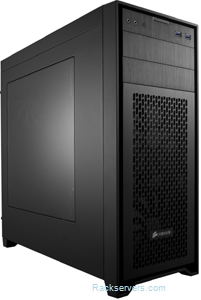

Corsair Obsidian 450D Mid Tower E-ATX |
| Height |
498mm |
|
Depth |
495mm |
| Width |
211mm |
|
|
|
| Bays |
| 2 x | 5.25" External |
| 3 x | 3.5" Internal |
| 5 x | 2.5" Internal |
|
|
Front USB Ports |
2 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
7 |
| Description |
Corsair Obsidian 450D Mid Tower. Advanced PC/Server E-ATX chassis. 2x 5.25" External bays, 3x Internal 3.5"/2.5" HD/SSD bays, 5x Internal 2.5" HD/SSD bays. Advanced low noise system cooling. High efficiency PSU options from 650W to 1600W. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Audio on board |
|
|
|
|
Optical Drive |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
