Model |
G291-Z20
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single AMD EPYC - Gigabyte G291-Z20 - 8x GPU Optimised |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP3 LGA |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
2048GB (8 x 256GB) |
| Expansion Slots |
|
8
x
PCI-e (3.0) x16
|
2
x
M.2 Key Socket
|
|
2
x
PCI-e (3.0) x16
(LP)
| |
|
| IO Ports |
Rear Ports: 2x USB 3.0, 1x VGA, 2x LAN SFP+, 1x IPMI LAN. |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(AMD SoC) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2500 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Mellanox ConnectX-4 Lx (SFP+) 1 Port 10GbE |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Also supported nVidia Geforce GTX & RTX and Radeon RX. Supports high speed AMD EPYC Series CPUs. Featuring high speed DDR4 2666MHz Ram. Arranged as high performance eight channel mode. Also supported quad channel mode, populated in fours. |
| Name |

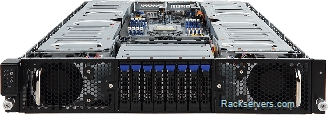

2U Gigabyte G291-Z20, 8x GPU |
| Height |
2U, 88mm |
|
Depth |
800mm |
| Width |
448mm |
|
|
|
| Bays |
|
|
Front USB Ports |
0 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
10 |
| Description |
2U Gigabyte G291-Z20 GPU solution. Supports up to 4x GPU adapters, with and 8x Hot Swap 2.5" HD/SSDs. Chassis with 1+1 Redundant 80plus (Platinum) 2200W PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Server Manager |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
