Model |
ESC4000A-E10
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single AMD EPYC - Asus ESC4000A-E10 - 4x GPU Optimised, 2x NVMe |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP3 LGA |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
2048GB (8 x 256GB) |
| Expansion Slots |
|
4
x
PCI-e (4.0) x16
|
1
x
PCI-e (4.0) x8
(LP)
|
|
2
x
PCI-e (4.0) x16
(LP)
|
1
x
M.2 Key Socket
|
|
| IO Ports |
Rear Ports: 2x USB 3.2 Gen 1, 1x VGA, 2x LAN (RJ45), 1x IPMI LAN.
Front Ports: 4x USB 3.2 Gen 1, Internal: 1x TPM Header |
On-board HD
controllers |
| 6 port SATA (6Gb/s)(AMD SoC) |
| 2 port NVMe (PCI-e 4.0)(AMD SoC) |
|
| On-board RAID |
| 6 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB8 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i350-AM2 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Also supported nVidia Geforce GTX & RTX and Radeon RX. Supports high speed AMD EPYC Series CPUs. Featuring high speed DDR4 3200MHz Ram. Arranged as high performance eight channel mode. Also supported quad channel mode, populated in fours. |
| Name |

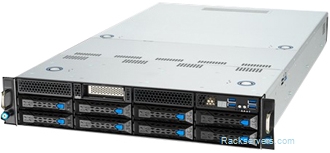

2U Asus ESC4000A-E10 4x GPU, 2x NVMe |
| Height |
2U, 89mm |
|
Depth |
800mm |
| Width |
440mm |
|
|
|
| Bays |
| 6 x | 3.5" Hot Swap |
| 2 x | 3.5"/2.5" NVMe (+SATA/SAS) Hot Swap |
|
|
Front USB Ports |
4 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0) |
|
Expansion Slots |
10 |
| Description |
2U Asus ESC4000A-E10 GPU solution. Supports up to 4x GPU adapters and 8x Hot Swap 3.5" HDDs. Chassis with 1+1 Redundant 80plus (Platinum) 1600W PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
