Model |
G242-Z11
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single AMD EPYC - Gigabyte G242-Z11 - 4x GPU Optimised, 2x NVMe |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP3 LGA |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
2048GB (8 x 256GB) |
| Expansion Slots |
|
4
x
PCI-e (4.0) x16
|
1
x
PCI-e (4.0) x8
(LP)
|
|
1
x
PCI-e (4.0) x16
(LP)
|
1
x
OCP Mezzanine (PCI-e 4.0 x16)
|
|
| IO Ports |
Front Ports: 2x USB 3.0, Rear Ports: 2x USB 3.0, 1x VGA, 1x IPMI LAN, Internal: 1x TPM Header |
On-board HD
controllers |
| 4 port SATA (6Gb/s)(AMD SoC) |
| 2 port NVMe (PCI-e 4.0)(AMD SoC) |
|
| On-board RAID |
| 4 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
| 2 port NVMe (PCI-e 4.0)(RAID N/A - JBOD Mode only)(AMD SoC) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2500 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | Management LAN 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Also supported nVidia Geforce GTX & RTX and Radeon RX. Supports high speed AMD EPYC Series CPUs. Featuring high speed DDR4 3200MHz RAM. Arranged as high performance eight channel mode. Also supported quad channel mode, populated in fours. |
| Name |

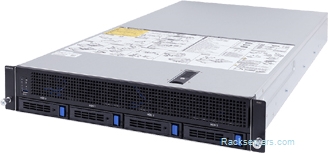

2U Gigabyte G242-Z11, 4x GPU |
| Height |
2U, 88mm |
|
Depth |
820mm |
| Width |
438mm |
|
|
|
| Bays |
| 4 x | 3.5" Hot Swap |
| 2 x | 2.5" Hot Swap (O/S Rear) |
|
|
Front USB Ports |
1 |
| Drive Support |
6 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0)/NVMe (PCI-e 4.0) |
|
Expansion Slots |
6 |
| Description |
2U Gigabyte G242-Z11 GPU solution. Supports up to 4x double width GPU adapters, with 4x Hot Swap 3.5" HD/SSDs. Plus 2x Rear 2.5" Hot Swap HD/SSD/NVMe. Chassis with 1+1 Redundant 80plus (Platinum) 1600W PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
