Model |
2029GP-TR
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual Xeon Scalable (X11DPG-SN) GPU Optimised |
|
Chipset |
Intel C621 |
| CPU Socket Type |
LGA-3647 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, triples, sixes, Linked to processor) |
|
Maximum RAM |
4096GB (16 x 256GB) |
| Expansion Slots |
|
6
x
PCI-e (3.0) x16
|
1
x
SIOM LAN Bus
|
|
1
x
PCI-e (3.0) x8 (in x16 Slot)
(LP)
|
1
x
Intel VROC Socket
|
|
| IO Ports |
2x USB 3.0 (Rear), 1x COM (Header), 1x VGA, 2x RJ45 LAN, 1x LAN (IPMI), 1x TPM Header |
On-board HD
controllers |
| 10 port SATA (6Gb/s)(Intel C621) |
| 2 port NVMe (PCI-e 3.0)(Intel C621) |
|
| On-board RAID |
| 10 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C621) |
| 2 port NVMe (PCI-e 3.0)(RAID via Intel VROC) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2500 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Supports two high speed Xeon Scalable Bronze, Silver, Gold, Platinum CPUs, up to 10.4 GT/s system bus. Featuring high speed DDR4 2666MHz Ram. Arranged as high performance Six channel, populated in sixes. Also supported triple and dual channel modes. |
| Name |

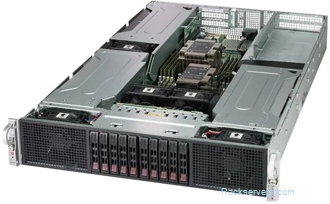

2U CSE-218GH-R2K03B (SuperServer 2029GP-TR) 6x GPU, 10x 2.5" H'Swap |
| Height |
2U, 89mm |
|
Depth |
787mm |
| Width |
437mm |
|
|
|
| Bays |
| 10 x | 2.5" Hot Swap (2 bays NVMe ready) |
|
|
Front USB Ports |
0 |
| Drive Support |
10 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0)/NVMe (PCI-e 4.0) |
|
Expansion Slots |
0 |
| Description |
4U SuperServer 2029GP-TR GPU solution. Supports up to 6x double width GPU adapters, with 10x Hot Swap 2.5" HD/SSDs (2 bays as NVMe). Chassis with 2200W Redundant (2+2) 80plus (Platinum) Power Supplies. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Intel VROC RAID |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Installed |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Server Manager |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
