Model |
R282-Z93
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual AMD EPYC - Gigabyte R282-Z93 (MZ92-FS0) - Up to 3x GPU support |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP3 LGA |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
4096GB (32 x 128GB) |
| Expansion Slots |
|
5
x
PCI-e (4.0) x16
|
1
x
OCP Mezzanine (PCI-e 3.0 x8)
|
|
1
x
OCP Mezzanine (PCI-e 4.0 x16)
|
1
x
M.2 Key Socket
|
|
| IO Ports |
2x USB 3.0 (Front), 2x USB 3.0 (Rear), 1x COM (Header), 1x VGA, 2x RJ45 LAN, 1x LAN (IPMI), 1x TPM Header |
On-board HD
controllers |
| 12 port SATA (6Gb/s)(AMD SoC) |
|
| On-board RAID |
| 12 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2500 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i350-AM2 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Supports up to two AMD EPYC 7002 series processors. System featuring high speed 3200MHz DDR4 Ram. Arranged as high performance Eight channel, populated in eights per processor. Also supported quad channel mode, populated in fours. Solution with multiple PCI-e (4.0) Expansion slots. |
| Name |
2U Gigabyte R282-Z93, Up to 3x GPU Support |
| Height |
2U, 87mm |
|
Depth |
730mm |
| Width |
438mm |
|
|
|
| Bays |
|
|
Front USB Ports |
2 |
| Drive Support |
12 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
7 |
| Description |

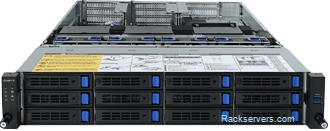

2U Gigabyte R282-Z93 GPU solution. Supports up to 3x double width GPU adapters, with 12x Hot Swap 3.5" HD/SSDs. Chassis with 1+1 Redundant 80plus (Platinum) 2000W PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
