Model |
G481-H81
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual Xeon Scalable - Gigabyte G481-H81 - 8x GPU Optimised |
|
Chipset |
Intel C621 |
| CPU Socket Type |
LGA-3647 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, sixes, Linked to processor) |
|
Maximum RAM |
3072GB (24 x 128GB) |
| Expansion Slots |
|
8
x
PCI-e (3.0) x16
|
1
x
PCI-e (3.0) x16
(LP)
|
|
1
x
PCI-e (3.0) x8 (in x16 Slot)
(LP)
| |
|
| IO Ports |
Front Ports: 2x USB 3.0, 1x VGA, 2x Gbit LAN RJ45, 4x QSFP28 (optional). Rear Ports: 2x USB 3.0, 1x IPMI LAN. Internal: 3x USB 3.0 (via header), 1x COM (via header), 1x TPM Header |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(Intel C621) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C621) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2500 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel X550 (10GBaseT) 1 Port 10GbE |
| 2 x | Intel i350-AM2 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Also supported nVidia Geforce GTX & RTX and Radeon RX. Supports high speed Intel Scalable Xeon Series CPUs. Featuring high speed DDR4 2933MHz RAM. Arranged as high performance six channel mode. Also supported quad channel mode, populated in fours. |
| Name |

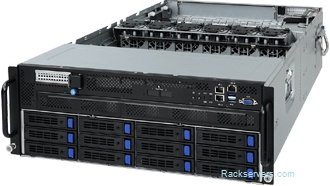

4U Gigabyte G481-H81, 8x GPU |
| Height |
4U, 176mm |
|
Depth |
880mm |
| Width |
448mm |
|
|
|
| Bays |
|
|
Front USB Ports |
0 |
| Drive Support |
12 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
10 |
| Description |
2U Gigabyte G481-H81 GPU solution. Supports up to 8x double width GPU adapters, with 12x Hot Swap 3.5"/2.5" HD/SSDs. Chassis with 3x 1600W Redundant 80plus (Platinum) PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
