Model |
G292-Z40
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual AMD EPYC - Gigabyte MZ42-G20 (G292-Z40) - 8x GPU Optimised |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP3 LGA |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
2048GB (16 x 128GB) |
| Expansion Slots |
|
8
x
PCI-e (4.0) x16
|
2
x
PCI-e (4.0) x16
(LP)
|
|
| IO Ports |
Rear Ports: 2x USB 3.0, 1x VGA, 1x IPMI LAN. Internal Ports: 1x TPM Header |
On-board HD
controllers |
| 4 port SATA (6Gb/s)(AMD SoC) |
| 4 port SATA (6Gb/s)/NVMe (PCI-e 4.0)(AMD SoC) |
|
| On-board RAID |
| 4 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
| 4 port SATA (6Gb/s)/NVMe (PCI-e 4.0)(RAID N/A - JBOD Mode only) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2500 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel X550 (10GBaseT) 1 Port 10GbE |
|
On-board
Graphics |
ASpeed AST2500/64(1Head)(64MB RAM) |
| General Info |
Designed for nVidia Tesla Supercomputing GPUs. Also supported nVidia Geforce GTX & RTX and Radeon RX. Supports high speed AMD EPYC Series CPUs. Featuring high speed DDR4 3200MHz Ram. Arranged as high performance eight channel mode. Also supported quad channel mode, populated in fours. |
| Name |
2U Gigabyte G292-Z40, 8x GPU |
| Height |
2U, 88mm |
|
Depth |
800mm |
| Width |
448mm |
|
|
|
| Bays |
| 8 x | 2.5" Hot Swap (4 bays NVMe ready) |
|
|
Front USB Ports |
0 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0) |
|
Expansion Slots |
10 |

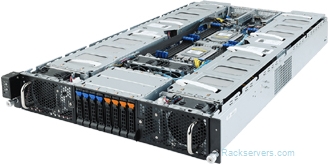

| Description |
2U Gigabyte G292-Z40 GPU solution. Supports up to 8x double width GPU adapters, with 8x Hot Swap 2.5" HD/SSDs (4 bays as NVMe). Chassis with 1+1 Redundant 80plus (Platinum) 2200W PSU system. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
16GB RAM (Total), 16GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
