Model |
R163-S32-AAC2
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single 5th/4th Gen Xeon Scalable Series (Gigabyte MS33-DC0) - 4x NVMe |
|
Chipset |
Intel C741 |
| CPU Socket Type |
FCLGA4677 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
4096GB (16 x 256GB) |
| Expansion Slots |
|
1
x
M.2 Key Socket
|
2
x
PCI-e (5.0) x16
|
|
1
x
Intel VROC Socket
|
2
x
OCP Mezzanine (PCI-e 5.0 x16)
|
|
| IO Ports |
6x USB 3.0 (4x Rear, 2x Via Header), 3x USB 2.0 (2x Via Header, 1x Type A), 1x VGA, 2x LAN, 1x dedicated LAN (IPMI), 2x COM Ports (1x Via Header), 1x TPM Header |
On-board HD
controllers |
| 4 port NVMe (PCI-e 4.0)(Via MCIO) |
| 8 port SATA (6Gb/s)(Intel C741) |
|
| On-board RAID |
| 4 port NVMe (PCI-e 4.0)(RAID via Intel VROC) |
| 8 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C741) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2600 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i210AT 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supports the latest 5th/4th Gen Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 16.0 GT/s UPI. Featuring high speed DDR5 4800MHz RAM. Arranged as high performance eight channel mode, populated in eights. Also supported quad channel mode, populated in fours. Supported full PCI-e (5.0) specification. 16x DIMM Sockets. 4x NVMe. |
| Name |

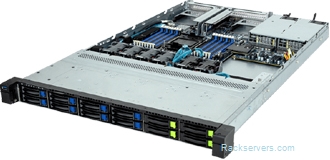

1U Gigabyte R163-S32 AAC2 - 12x 2.5" H'Swap bays (4 bays NVMe ready) |
| Height |
1U, 44mm |
|
Depth |
710mm |
| Width |
438mm |
|
|
|
| Bays |
| 12 x | 2.5" Hot Swap (4 bays NVMe ready) |
|
|
Front USB Ports |
1 |
| Drive Support |
12 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 4.0) |
|
Expansion Slots |
2 |
| Description |
1U Gigabyte R163-S32 AAC2, 12x 2.5" Hot Swap Bays (4 bays NVMe ready). 2x PCI-e (5.0) x16 slots, 2x OCP Mezzanine (PCI-e (5.0) x16 slots. 1+1 Redundant 1300W 80plus Platinum PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
