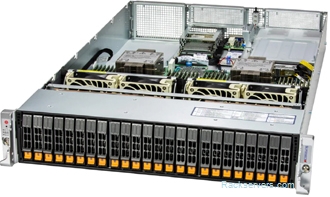

Model |
SYS-221H-TN24R
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual 5th/4th Gen Xeon Scalable Series (X13DEM) - 8x NVMe, 16x SAS3, Flexible AIOM LAN |
|
Chipset |
Intel C741 |
| CPU Socket Type |
FCLGA4677 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
8192GB (32 x 256GB) |
| Expansion Slots |
|
3
x
PCI-e (5.0) x16
|
2
x
M.2 Key Socket
|
|
2
x
PCI-e (5.0) x16 AIOM LAN
|
1
x
Intel VROC Socket
|
|
| IO Ports |
2x USB 2.0 Rear, 1x VGA, 1x dedicated LAN (IPMI), 1x TPM Header |
On-board HD
controllers |
| 8 port NVMe (PCI-e 5.0)(Via MCIO) |
| 16 port SAS3 (12Gb/s) /SATA (6Gb/s)(Via SM AOC) |
|
| On-board RAID |
| 8 port NVMe (PCI-e 5.0)(RAID via Intel VROC) |
| 16 port SAS3 (12Gb/s) /SATA (6Gb/s)(RAID 0,1,5,6,10,50,60)(Via SM AOC) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2600 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | None Integrated 0 Port N/A |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supports two 5th/4th Gen Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 16.0 GT/s UPI. Featuring high speed DDR5 4800MHz RAM. Arranged as high performance eight channel mode, populated in fours. Also supported quad channel mode, populated in fours. Supported full PCI-e (5.0) specification. 32x DIMM Sockets. 24x NVMe (5.0), two flexible AIOM LAN PCI-e (5.0) x16 slots |
| Name |
2U CSE-HS219-R1K63P 24x Hot Swap Bays (Mix NVMe/SAS/SATA) - 2x 1600W |
| Height |
2U, 89mm |
|
Depth |
760mm |
| Width |
437mm |
|
|
|
| Bays |
| 16 x | 2.5" Hot Swap |
| 8 x | 2.5" NVMe Hot Swap |
|
|
Front USB Ports |
0 |
| Drive Support |
24 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0)/NVMe (PCI-e 4.0) |
|
Expansion Slots |
7 |
| Description |
|
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
128GB RAM (Total), 64GB for CPU1, 64GB for CPU2
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Intel VROC RAID |
|
|
|
|
Graphics on board |
|
|
|
|
LAN on board |
|
|
|
|
LAN Installed |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Server Manager |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
