Model |
RS720A-E12-RS12
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual AMD EPYC 9004 - RK14PP-D2 - 12x 3.5" Hot Swap (8 Bays NVMe ready), 3x GPU |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP5 LGA |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, twelves, Linked to processor) |
|
Maximum RAM |
6144GB (24 x 256GB) |
| Expansion Slots |
|
3
x
PCI-e (5.0) x16
|
1
x
PCI-e (5.0) x16
(LP)
|
|
2
x
PCI-e (5.0) x8
|
2
x
M.2 Key Socket
|
|
| IO Ports |
2x USB 3.1 Rear, 2x USB 3.2 Front, 1x VGA Rear, 2x LAN, 1x LAN (IPMI) |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(AMD SoC) |
| 8 port NVMe (PCI-e 5.0)(Via MCIO) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
| 8 port NVMe (PCI-e 5.0)(RAID N/A - JBOD Mode only) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB11-iKVM) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel X710-AT2 (RJ45) 1 Port 10GbE |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supports two AMD EPYC 9004 series processors. System featuring high speed DDR5 4800MHz RAM (Registered ECC). Arranged as high performance Eight channel, populated in eights per processor. Also supported quad channel mode, populated in fours. System with integrated 2x Intel 10GbE X710-AT2 LAN ports. |
| Name |
2U ASUS RS720A-E12-RS12U - 12x 3.5" NVMe/SAS/SATA bays |
| Height |
2U, 88mm |
|
Depth |
840mm |
| Width |
449mm |
|
|
|
| Bays |
| 12 x | 3.5"/2.5" NVMe (+SATA/SAS) Hot Swap |
|
|
Front USB Ports |
2 |
| Drive Support |
12 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 4.0)/NVMe (PCI-e 5.0) |
|
Expansion Slots |
6 |
| Description |

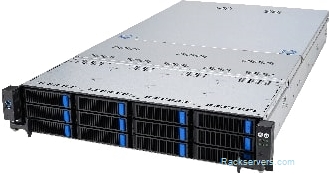

2U ASUS RS720A-E12-RS12U, 12x 3.5" Hot Swap Bays (8 bays NVMe ready). 9x PCI-e (5.0) FH slots, 3x Double Width GPU support. 1+1 Redundant 2600W 80plus Titanium PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
