Model |
RS501A-E12-RS4
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single AMD EPYC 9005 - ASUS K14PA-U24-T (RS501A-E12-RS4) |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP5 LGA |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, twelves, Linked to processor) |
|
Maximum RAM |
6144GB (24 x 256GB) |
| Expansion Slots |
|
1
x
PCI-e (5.0) x16
|
1
x
OCP (PCI-e 5.0 x16)
|
|
1
x
PCI-e (5.0) x16
(LP)
|
2
x
M.2 Socket
|
|
1
x
PCI-e (5.0) x8 (in x16 slot)
(LP)
| |
|
| IO Ports |
Front Ports: 2x USB 3.2 Gen 1, 1x VGA

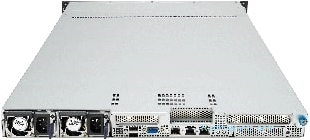

Rear Ports: 2x USB 3.2 Gen 1, 1x VGA, 2x LAN (RJ45), 1x IPMI LAN.
Internal: 1x TPM Header |
On-board HD
controllers |
| 4 port NVMe (PCI-e 5.0)(AMD SoC) |
| 4 port SATA (6Gb/s)(AMD SoC) |
|
| On-board RAID |
| 4 port NVMe (PCI-e 5.0)(RAID via Optional GraidRAID) |
| 4 port SATA (6Gb/s)(RAID N/A - JBOD Mode only) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB11-iKVM BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | Intel i350 2 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Single 5th Gen AMD EPYC 9005 Series CPUs, up to 400W TDP (max 360W TDP with 2x GPUs installed). Featuring high speed DDR5 5600MHz RAM. Arranged as high performance twelve channel mode. Also supported eight & quad channel modes. |
| Name |
1U ASUS RS501A-E12-RS4, 4x NVMe (5.0)
|
| Height |
1U, 44mm |
|
Depth |
843mm |
| Width |
449mm |
|
|
|
| Bays |
| 4 x | 3.5" Hot Swap (4 bays NVMe ready) |
|
|
Front USB Ports |
2 |
| Drive Support |
4 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 4.0)/NVMe (PCI-e 5.0) |
|
Expansion Slots |
3 |
| Description |
1U ASUS RS501A-E12-RS4, 4x 3.5" Hot Swap NVMe(5.0)/SSD/HD Bays. 3x PCI-e (5.0) Slots, 1x OCP 3.0, dual redundant (1+1) 1600W 80plus Titanium PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Server Manager |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
