Model |
RS720A-E13-RS24U
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual AMD EPYC 9005 - ASUS K15PP-D24 (RS720A-E13-RS24U) |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP5 LGA |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, sixes, eights, twelves, Linked to processor) |
|
Maximum RAM |
6144GB (24 x 256GB) |
| Expansion Slots |
|
5
x
PCI-e (5.0) x16
|
2
x
OCP (PCI-e 5.0 x16)
|
|
| IO Ports |
Rear Ports: 2x USB 3.2 Gen 1, 1x Mini-DP, 1x IPMI LAN.
Front Ports: 2x USB 3.2 Gen 1 |
On-board HD
controllers |
| 24 port NVMe (PCI-e 5.0)(Via 12x MCIO) |
| 16 port SATA (6Gb/s)(AMD SoC) |
|
| On-board RAID |
| 24 port NVMe (PCI-e 5.0)(RAID N/A - JBOD Mode only) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASM12-iKVM BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | None Integrated 0 Port N/A |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supports dual 5th Gen AMD EPYC 9005 Series CPUs, up to 400W TDP. Featuring high speed DDR5 5600MHz RAM. Arranged as high performance twelve channel mode. Also supported eight & quad channel modes. |
| Name |

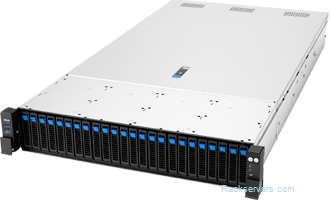

2U ASUS RS720A-E13-RS24U - 24x 2.5" Hot Swap Bays (8x NVMe + 16x NVMe/SATA/SAS) |
| Height |
2U, 88mm |
|
Depth |
830mm |
| Width |
449mm |
|
|
|
| Bays |
| 24 x | 2.5" NVMe (+ Hybrid SATA/SAS) Hot Swap |
|
|
Front USB Ports |
2 |
| Drive Support |
24 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 4.0)/NVMe (PCI-e 5.0) |
|
Expansion Slots |
6 |
| Description |
2U ASUS RS720A-E13-RS24U, 24x 2.5" Hot Swap Bays (8x NVMe + 16x NVMe/SATA/SAS). 3x PCI-e (5.0) x16 FHFL slots, 2x PCI-e (5.0) x16 FHHL slots, 2x OCP Mezzanine (PCI-e (5.0) x16 slots. 1+1 Redundant 3200W 80plus Titanium PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
