Model |
SYS-212GB-NR
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single Xeon 6700 Series (X14SBGM) - 4x H200 NVL, 4x NVMe 5.0 |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
FCLGA4710 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
2048GB (16 x 128GB) |
| Expansion Slots |
|
7
x
PCI-e (5.0) x16
|
1
x
Intel VROC Socket
|
|
2
x
M.2 (PCI-e 5.0) 22110
| |
|
| IO Ports |
1x USB 3.0 Rear, 1x MiniDP, 1x dedicated LAN (IPMI), 1x TPM Header |
On-board HD
controllers |
| 4 port NVMe (PCI-e 5.0)/NVMe (PCI-e 4.0)(Via MCIO) |
|
| On-board RAID |
| 4 port NVMe (PCI-e 5.0)/NVMe (PCI-e 4.0)(RAID via Intel VROC) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2600 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | None Integrated 0 Port N/A |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supports one Xeon 6700 Series CPU, up to 24.0 GT/s UPI. Featuring high speed DDR5 6400MHz RAM. Arranged as high performance eight channel mode, populated in eights. Also supported quad channel mode, populated in fours. Supported full PCI-e (5.0) specification. 16x DIMM Sockets. 4x H200 NVL or NVIDIA RTX PRO 600 Blackwell, 4x NVMe. |
| Name |

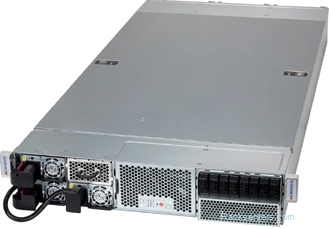

2U Supermicro CSE-GP201TS-R000NP (SYS-212GB-NR) - 4x GPU Optimised, 3x 2000W 2+1 (4000W) |
| Height |
2U, 88mm |
|
Depth |
900mm |
| Width |
439mm |
|
|
|
| Bays |
|
|
Front USB Ports |
0 |
| Drive Support |
4 port NVMe (PCI-e 5.0)/NVMe (PCI-e 4.0) |
|
Expansion Slots |
7 |
| Description |
|
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Intel VROC RAID |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
