Model |
G294-A21-AAP2
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single Xeon 6900 Series MA24-G20 (G294-A21-AAP2)- 4x H200 NVL |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
LGA7529 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, twelves, Linked to processor) |
|
Maximum RAM |
3072GB (12 x 256GB) |
| Expansion Slots |
|
4
x
PCI-e (5.0) x16
|
2
x
M.2 (PCI-e 5.0) 2280
|
|
2
x
PCI-e (5.0) x16
(LP)
| |
|
| IO Ports |
2x USB 3.2 Rear, 1x VGA, 2x LAN (RJ45), 1x dedicated LAN (IPMI), 1x TPM Header |
On-board HD
controllers |
| 8 port SATA (6Gb/s)/SAS4 (24Gb/s)(AMD SoC) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)/SAS4 (24Gb/s)(RAID N/A - JBOD Mode only) |
|
|
On-board Features |
|
| On-board LAN |
| 1 x | Intel X710-AT2 (RJ45) 2 Port 10GbE |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
|
| Name |

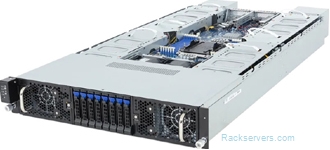

2U Gigabyte G294-A21-AAP2 - 4x GPU Optimised, 2x 3000W |
| Height |
2U, 88mm |
|
Depth |
962mm |
| Width |
448mm |
|
|
|
| Bays |
|
|
Front USB Ports |
0 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
6 |
| Description |
|
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
