System FeaturesChassis Features
| Motherboard |
Dual AMD Opteron 2000 (DMi-2) |
|
Chipset |
nVidia MCP55 Pro |
| CPU Socket Type |
Socket F (1207) |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR2 (Use in pairs, Linked to processor) |
|
Maximum RAM |
64GB (8 x 8GB) |
| Expansion Slots |
|
3
x
PCI-X - (133 MHz)
|
2
x
PCI-e x8
|
|
1
x
PCI-e x4
| |
|
| IO Ports |
4 x USB 2.0 Internal, 2x USB 2.0 Rear, 1 x Serial |
On-board HD
controllers |
| 6 port SATA (3Gb/s)(nVidia MCP55 Pro ) |
|
| On-board RAID |
| 6 port SATA (3Gb/s)(RAID 0,0+1,5,JBOD)(nVidia MCP55 Pro) For Windows use only |
|
|
On-board Features |
|
| On-board LAN |
| 1 x | nVidia MCP55 Pro 2 Port Gigabit |
|
On-board
Graphics |
ATI ES1000-32(1Head)(32MB RAM) |
| General Info |
Support for latest 45nm Shanghai Opteron processors |
| Name |

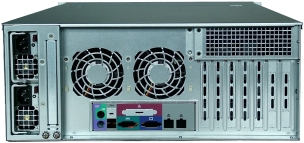

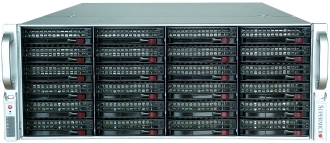

4U SC846ATQ |
| Height |
4U, 178mm |
|
Depth |
660mm |
| Width |
437mm |
|
|
|
| Bays |
| 24 x | 3.5" Hot Swap |
| 1 x | 5.25" Slim External |
| 2 x | 2.5" Internal |
|
|
Front USB Ports |
0 |
| Drive Support |
24 port SATA (6Gb/s)/SAS2 (6Gb/s) |
|
Expansion Slots |
7 |
| Description |
|
|
|
|
RAM |
|
|
|
|
RAID on board |
|
|
|
|
|
|
|
