Model |
RS5-5624-2i
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Xeon 5600 Quad/Six-Core (8-DTH-iF) |
|
Chipset |
Intel 5520 |
| CPU Socket Type |
LGA-1366 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR3 (Use in pairs, triples, Linked to processor) |
|
Maximum RAM |
384GB (12 x 32GB) |
| Expansion Slots |
|
| IO Ports |
2 x USB 2.0 Internal, 2x USB 2.0 Rear, 1 x Serial, 3x LAN |
On-board HD
controllers |
| 6 port SATA (3Gb/s)(Intel ICH10R) |
|
| On-board RAID |
| 6 port SATA (3Gb/s)(RAID 0,1,5,10)(Intel ICH10R) For Windows use only |
|
|
On-board Features |
Integrated IPMI 2.0 remote management with Dedicated LAN (Winbond® WPCM450 BMC). Supports virtual media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | Intel 82576 2 Port Gigabit |
|
On-board
Graphics |
Matrox G200eW-8(1Head)(8MB RAM) |
| General Info |
Supports ultra high speed Xeon 5600 (Westmere) series CPUs, up to 6.4 GT/s system bus. Also supported high speed DDR3 Ram. Arranged as high performance Triple channel (recommended for best performance) - populated in three's per processor. Ram also supported as dual channel, populated in pairs. N.B. Ram is linked to each processor (up to 6 sockets per CPU). |
| Name |

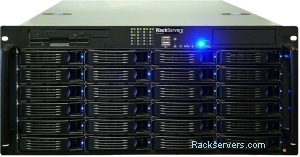

5U C519AE |
| Height |
5U, 220mm |
|
Depth |
660mm |
| Width |
430mm |
|
|
|
| Bays |
| 24 x | 3.5" Hot Swap |
| 2 x | 3.5" Internal |
| 1 x | 5.25" Slim External |
|
|
Front USB Ports |
2 |
| Drive Support |
24 port SATA (6Gb/s)/SAS2 (6Gb/s) |
|
Expansion Slots |
7 |
| Description |
High density 5U chassis with 24x 3.5" Hot Swap hdd bays and 24 Port SAS2 6Gb/s expander built in. A single LSI or 3Ware 4 Port SAS/SATA 6Gb/s Raid adapter controls all 24 drives via the SAS expander. This solution also provides two Internal 3.5" hard drive bays for independant system drives. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
6GB RAM (Total), 6GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller for Internal or Rear HD/SSDs |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
NAS/iSCSI/SAN |
|
|
|
|
Optical Drive |
|
|
|
|
Card reader |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
