System FeaturesChassis Features
| Motherboard |
Xeon 5600 Quad/Six-Core (8-CTL-6F) |
|
Chipset |
Intel 5500 |
| CPU Socket Type |
LGA-1366 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR3 (Use in pairs, triples, Linked to processor) |
|
Maximum RAM |
48GB (6 x 8GB) |
| Expansion Slots |
|
2
x
PCI-e (2.0) x8
|
1
x
PCI-e x4
|
|
1
x
PCI-e (2.0) x4
|
2
x
PCI 32 bit - (33 MHz)
|
|
1
x
SAS Raid Key Socket
| |
|
| IO Ports |
2 x USB 2.0 Internal, 2x USB 2.0 Rear, 1 x Serial, 3x LAN |
On-board HD
controllers |
| 8 port SAS2 (6Gb/s)/SATA (3Gb/s)(LSI SASII 2008) |
|
| On-board RAID |
| 8 port SAS2 (6Gb/s)/SATA (3Gb/s)(RAID 0,1,10)LSI SAS 2008 - See MRRAKEY for Raid5 |
|
|
On-board Features |
Integrated IPMI 2.0 remote management with Dedicated LAN (Winbond® WPCM450 BMC). Supports virtual media over LAN & KVM over LAN |
| On-board LAN |
| 1 x | Intel 82574L 2 Port Gigabit |
|
On-board
Graphics |
Matrox G200eW-8(1Head)(8MB RAM) |
| General Info |
Supports ultra high speed Xeon 5600 (Westmere) series CPUs, up to 6.4 GT/s system bus. Also supported high speed DDR3 Ram. Arranged as high performance Triple channel. Populated in three's per processor..Integrated LSI 2008 SAS2 6Gb/s Controller supports up to Raid 5 with optional SAS MRRAKEY installed. Further advanced add-in SAS/SATA Raid controllers also available. |

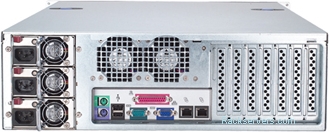

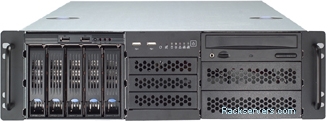

| Name |
3U C313AS |
| Height |
3U, 132mm |
|
Depth |
660mm |
| Width |
430mm |
|
|
|
| Bays |
| 3 x | 5.25" External |
| 5 x | 3.5" Hot Swap |
| 3 x | 3.5" Internal |
| 3 x | 3.5" External |
|
|
Front USB Ports |
2 |
| Drive Support |
5 port SATA (3Gb/s)/SATA (6Gb/s)/SAS (3Gb/s)/SAS2 (6Gb/s) |
|
Expansion Slots |
7 |
| Description |
3U Multi-purpose server chassis. 5x 3.5" SATA/SAS hotswap. 3x 5.25" External & 3x 3.5" External bays as standard. Supports 5.25" full height Tape drives. Single 550W PSU or Redundant 650W power option. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
|
RAID on board |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
|
|
