System FeaturesChassis Features
| Motherboard |
8-CTL-IFST - Storage Solution |
|
Chipset |
Intel 5500 |
| CPU Socket Type |
LGA-1366 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR3 (Use in pairs, triples, Linked to processor) |
|
Maximum RAM |
48GB (6 x 8GB) |
| Expansion Slots |
|
2
x
PCI-e (2.0) x8
|
1
x
PCI-e x4
|
|
1
x
PCI-e (2.0) x4
|
2
x
PCI 32 bit - (33 MHz)
|
|

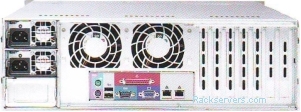

| IO Ports |
2 x USB 2.0 Internal, 2x USB 2.0 Rear, 1 x Serial, 3x LAN |
On-board HD
controllers |
|
| On-board RAID |
|
|
On-board Features |
Integrated IPMI 2.0 remote management with Dedicated LAN (Winbond® WPCM450 BMC). Supports virtual media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | Intel 82574L 2 Port Gigabit |
|
On-board
Graphics |
Matrox G200eW-8(1Head)(8MB RAM) |
| General Info |
Designed for high performance Storage Systems. Utilising ultra high speed Xeon 5600 (Westmere) series CPUs, up to 6.4 GT/s system bus. Also supported high speed DDR3 Ram. Arranged as high performance Triple channel. |
| Name |
3U 836E26 Twin Expander |
| Height |
3U, 132mm |
|
Depth |
650mm |
| Width |
437mm |
|
|
|

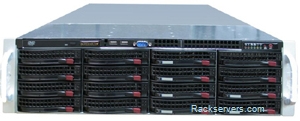

| Bays |
| 16 x | 3.5" Hot Swap |
| 1 x | 5.25" Slim External |
| 1 x | 3.5" Slim Floppy |
|
|
Front USB Ports |
2 |
| Drive Support |
16 port SATA (3Gb/s)/SATA (6Gb/s)/SAS (3Gb/s)/SAS2 (6Gb/s) |
|
Expansion Slots |
7 |
| Description |
Ultra high density 3U chassis with Dual LSI SAS2 6Gb/s X28 Expanders built in. Twin 4 Port SAS2/SATA 6Gb/s Raid adapters control 8 drives each (Raid controller mirroring) via twin SAS expanders. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
|
RAID on board |
|
|
|
|
|
|
