Model |
Industrial4-03
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Xeon 5600 Quad/Six-Core (8-CTL-6F) |
|
Chipset |
Intel 5500 |
| CPU Socket Type |
LGA-1366 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR3 (Use in pairs, triples, Linked to processor) |
|
Maximum RAM |
48GB (6 x 8GB) |
| Expansion Slots |
|
2
x
PCI-e (2.0) x8
|
1
x
PCI-e x4
|
|
1
x
PCI-e (2.0) x4
|
2
x
PCI 32 bit - (33 MHz)
|
|
1
x
SAS Raid Key Socket
| |
|
| IO Ports |
2 x USB 2.0 Internal, 2x USB 2.0 Rear, 1 x Serial, 3x LAN |
On-board HD
controllers |
| 8 port SAS2 (6Gb/s)/SATA (3Gb/s)(LSI SASII 2008) |
|
| On-board RAID |
| 8 port SAS2 (6Gb/s)/SATA (3Gb/s)(RAID 0,1,10)LSI SAS 2008 - See MRRAKEY for Raid5 |
|
|
On-board Features |
Integrated IPMI 2.0 remote management with Dedicated LAN (Winbond® WPCM450 BMC). Supports virtual media over LAN & KVM over LAN |
| On-board LAN |
| 1 x | Intel 82574L 2 Port Gigabit |
|
On-board
Graphics |
Matrox G200eW-8(1Head)(8MB RAM) |
| General Info |
Supports ultra high speed Xeon 5600 (Westmere) series CPUs, up to 6.4 GT/s system bus. Also supported high speed DDR3 Ram. Arranged as high performance Triple channel. Populated in three's per processor..Integrated LSI 2008 SAS2 6Gb/s Controller supports up to Raid 5 with optional SAS MRRAKEY installed. Further advanced add-in SAS/SATA Raid controllers also available. |
| Name |

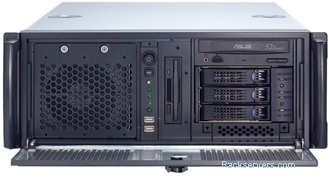

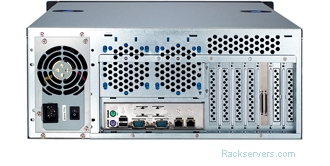

4U 422 Industrial 700 |
| Height |
4U, 176mm |
|
Depth |
522mm |
| Width |
430mm |
|
|
|
| Bays |
| 1 x | 5.25" External |
| 3 x | 3.5" Hot Swap |
| 1 x | 3.5" Internal |
| 1 x | 3.5" External |
| 1 x | 5.25" Slim External |
|
|
Front USB Ports |
2 |
| Drive Support |
3 port SATA (3Gb/s)/SATA (6Gb/s)/SAS (3Gb/s)/SAS2 (6Gb/s) |
|
Expansion Slots |
7 |
| Description |
Industrial 4U, ideal for Military, Telecoms and Graphics applications |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
6GB RAM (Total), 6GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
Internal or Rear HD/SSD |
|
|
|
|
Internal or Rear HD/SSD2 |
|
|
|
|
Internal or Rear HD/SSD3 |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SAS/PCI-e Card |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Optical Drive |
|
|
|
|
Backup drive |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
