| Model
|
SBladeXO-720E
|
System Ref
|
|
|
|
| System Features
|
Installation of up to 10x Intel Xeon dual processor (or quad) Blade Nodes and/or AMD Opteron dual processor (or quad) Blade nodes, or up to 10x Intel based Twinblades (up to 20 dual CPU nodes).
Full range of Supermicro Blade Nodes ready for Insertion and 100% multifaceted configuration below - 'Add a Blade Node'
Solution supports up to two hot-plug IB FDR/QDR switches or two hot-plug 1/10 Gigabit Ethernet Layer 2/3 switches.
Supports up to two Pass-Through modules. Blade switch options
N.B. A maximum of 2x Switches plus 1x Pass-Through modules or the reverse of that is supported in any one configuration.
Supports one hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionality.
System supplied with 2x hot swap 2500W power supplies, 1+1 redundant - with further PSU options (Enclosure models) in the PSU pull down.
|
| Chassis Model
|

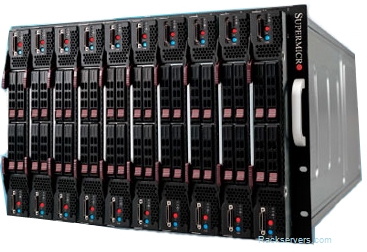

Blade Enclosure SBE-720E
|
| Description
|
10 Blade Enclosure, Chassis Management Module (CMM) not included (optional in pulldown).
|
| Height
|
7U, 737mm
|
|
Depth
|
470mm
|
| Width
|
307mm
|
|
|
PSU Configuration |
|
|
|
|
Switch or Passthru |
|
|
|
|
Switch or Passthru 2 |
|
|
|
|
Chassis Management Module |
|
|
|
|
Enclosure Maintenance |
|
|
|
|
|
|
|
Add a Blade Node |
|
|
|
|
|
