Model
|
6028TP-HTTR
|
System Ref
|
|
|
|
System Features
|
Supermicro 2U quad node server solution model 6028TP-HTTR, featuring four hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 CPUs, 3x 3.5" Hot Swap HD/SSD bays and up to 2TB DDR4 RAM per node. Each node can be online configured independently from each other with all multifaceted options available with no restrictions - using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
Chassis Model
|
2U CSE-827HQ+-R2K04B (6028TP-HTTR)
|
Description
|
3x 3.5" Hot Swap HD/SSD Bays per node.
Solution with Dual Redundant (Titanium 97%) 2000W PSU.
|
Height
|
2U, 88mm
|
|
Depth
|
774mm
|
Width
|
438mm
|
|
PSU |
|
|
|
Chassis Colour |
|
|
|
Monitor |
|
|
|
Mouse |
|
|
|
Keyboard |
|
|
|
External Optical Drive |
|
|
|
|
Telescopic Rail Kit included
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
Node General Info
|

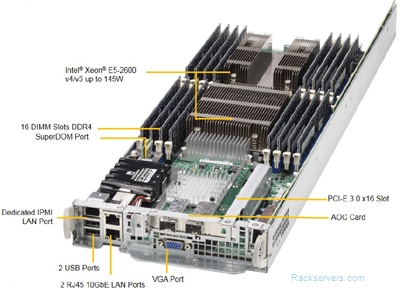

Supports dual Xeon E5-2600 v4 series CPUs, 3x 3.5" Hot Swap HD/SSDs (per node). 2x Intel X540 (10GBaseT) 10GbE LAN ports (per node).
|
Node Chassis
|
6028TP-HTTR Node Module
|
|
Motherboard
|
Quad Node Dual Xeon E5-2600 v4 series (X10DRT-PT)
|
Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|
1x PCI-e (3.0) x16 (LP), 1x Supermicro '0' Slot (Ultra compact) (3.0) x16, 1x SATA DOM Port, 2x USB 3.0 Rear, VGA, 1x TPM Header
|
CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
Maximum Ram
|
1024GB (8 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
On-Board LAN
|
2 x Intel X540 (10GBaseT) 1 x 10GbE |
|
|
On-board RAID
|
3 port SATA (6Gb/s)(RAID 0,1,10) (Intel C612) |
|
Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2400/32(1Head)(32MB RAM)
|
HD Bays
|
|
|
Drive Support
|
SATA (3Gb/s) / SATA (6Gb/s) / SAS (3Gb/s) / SAS2 (6Gb/s) - 3 Ports
|
|
Processor |
|
|
|
RAM |
|
|
|
|
32GB RAM (Total), 32GB for CPU1
|
|
|
On-Board Raid |
3 port SATA (6Gb/s)(RAID 0,1,10) (Intel C612)
|
|
|
H'Swap HD/SSD |
|
|
|
H'Swap HD/SSD2 |
|
|
|
H'Swap HD/SSD3 |
|
|
|
SATA DOM |
|
|
|
SATA DOM 2 |
|
|
|
PCI-e SSD |
|
|
|
PCI-e SSD 2 |
|
|
|
SAS/Add-in Card |
|
|
|
On-Board Graphics |
ASpeed AST2400/32(1Head)(32MB RAM)
|
|
|
On-Board LAN |
2 x Intel X540 (10GBaseT) 1 x 10GbE
|
|
|
LAN Controller |
|
|
|
LAN Controller 2 |
|
|
|
Server Manager |
|
|
|
TPM Module |
|
|
|
OS Version |
|
|
|
Software |
|
|
|
Software 2 |
|
|
|
Software 3 |
|
|
|
|
|
|
|
