Supermicro 2U quad node server solution, featuring four hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 CPUs. Solution offers fully independent Supermicro SIOM LAN adapter options per node. Integrated 6 port Broadcom 3108 12Gb/s SAS3 Raid controllers per node. Each node can be online configured independently from each other with all multifaceted options available with no restrictions - using the Multinode System Node configurator engines. System Nodes are listed below.
|
| Chassis Model
|
2U CSE-217HQ+-R2K04B2 (2028TP-HC1R-SIOM)
|
| Description
|
6x 2.5" Hot Swap HD/SSD Bays per node.
Solution with Dual Redundant (Titanium 96%) 2000W PSU.
|
| Height
|
2U, 88mm
|
|
Depth
|
730mm
|
| Width
|
438mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
External Optical Drive |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|
Supports dual Xeon E5-2600 v4 series CPUs, 6x 2.5" Hot Swap HD/SSDs (per node). Each node comes with 1x SIOM LAN adapter by default (All LAN types are selectable for full network flexibility per node).
|
| Node Chassis
|

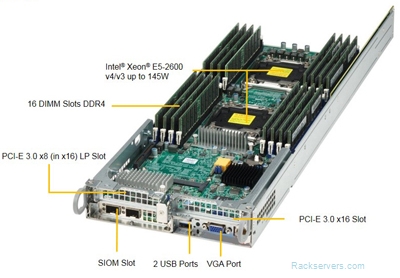

2028TP-HC1R-SIOM Node Module
|
|
Motherboard
|
Quad Node Dual Xeon E5-2600 v4 series (X10DRT-PS) 6x 12Gb/s SAS ports
|
| Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|
1x PCI-e (3.0) x16 (LP), 1x PCI-e (3.0) x8 (LP), 1x SIOM LAN Card support, 1x SATA DOM Port, 2x USB 3.0 Rear, 1x VGA
|
| CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
2048GB (16 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
| On-Board LAN
|
|
|
On-board RAID
|
| 6 port SAS3 (12Gb/s) /SATA (6Gb/s)(RAID 0,1,5,6,10,50,60) (Broadcom H/W SAS3 3108) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2400/32(1Head)(32MB RAM)
|
| HD Bays
|
|
|
Drive Support
|
SATA (6Gb/s) / SAS3 (12Gb/s) - 6 Ports
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
On-Board Raid |
6 port SAS3 (12Gb/s) /SATA (6Gb/s)(RAID 0,1,5,6,10,50,60) (Broadcom H/W SAS3 3108)
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SATA DOM |
|
|
|
|
SATA DOM 2 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
SAS/Add-in Card |
|
|
|
|
On-Board Graphics |
ASpeed AST2400/32(1Head)(32MB RAM)
|
|
|
|
