| Model
|
2028TR-HTR
|
System Ref
|
|
|
|
| System Features
|
Supermicro 2U quad node server solution model 2028TR-HTR, featuring four hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 CPUs. 6x 2.5" Hot Swap HD/SSD bays and up to 1TB DDR4 RAM per node. Each node can be online configured independently from each other with all multifaceted options with no restrictions, using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
| Chassis Model
|
2U CSE-217HQ-R1K68B (2028TR-HTR)
|
| Description
|
6x 2.5" Hot Swap HD/SSD Bays per node.
Solution with Dual Redundant (Titanium 97%) 1600W PSU.
|
| Height
|
2U, 88mm
|
|
Depth
|
724mm
|
| Width
|
438mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
External Optical Drive |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|

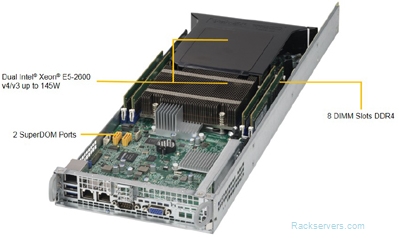

Supports dual Xeon E5-2600 v4 series CPUs, 6x 2.5" Hot Swap HD/SSDs (per node). 2x Intel i350-AM2 Gigabit LAN ports (per node).
|
| Node Chassis
|
2028TP-HTR Node Module
|
|
Motherboard
|
Quad Node Dual Xeon E5-2600 v4 series (X10DRT-H) 6x SATA ports
|
| Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|
1x PCI-e (3.0) x16, 2x SATA DOM Port, 2x USB 3.0 Rear, 1x VGA, 1x TPM Header
|
| CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
1024GB (8 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
| On-Board LAN
|
| 2 x Intel i350 1 x Gigabit |
|
|
On-board RAID
|
| 6 port SATA (6Gb/s)(RAID 0,1,5,10) (Intel C612) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2400/32(1Head)(32MB RAM)
|
