| Model
|
1028TP-DC1R
|
System Ref
|
|
|
|
| System Features
|
Supermicro 1U twin node server solution model 1028TP-DC1R, featuring two hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 CPUs, 4x 3.5" Hot Swap HD/SSD bays per node and up to 2TB DDR4 RAM per node. Integrated Broadcom SAS3 12Gb/s Raid 0,1,5,6,10 per node. Each node can be online configured independently from each other with all multifaceted options available, with no restrictions, using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
| Chassis Model
|
1U CSE-809H-R1K05, 2x (4x 2.5") (1028TP-DC1R)
|
| Description
|
4x 2.5" Hot Swap HD/SSD Bays per node.
Solution with dual redundant (Titanium 96%) 1000W PSU.
|
| Height
|
1U, 43mm
|
|
Depth
|
718mm
|
| Width
|
437mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
External Optical Drive |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
1 x Unconfigured Node Or use the Quantity Multiplier above
|
|
| Node General Info
|

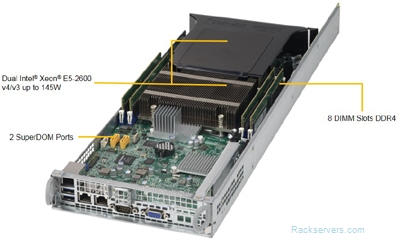

Supports dual Xeon E5-2600 v4 series CPUs, 2x 3.5" Hot Swap HD/SSDs (per node). 2x Intel i350 Gigabit LAN ports (per node). Integrated Broadcom 3108 SAS3 12Gb/s Raid 0,1,5,6,10 per node.
|
| Node Chassis
|
1028TP-DC1R Node Module
|
|
Motherboard
|
Twin Node Dual Xeon E5-2600 v4 series (X10DRT-P-SAS)
|
| Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|
1x PCI-e (3.0) x16 (LP), 1x SATA DOM Port, 2x USB 3.0 Ports (Rear), 1x COM (Header), VGA, 1x TPM Header.
|
| CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
2048GB (16 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
| On-Board LAN
|
| 2 x Intel i350 1 x Gigabit |
|
|
On-board RAID
|
| 4 port SAS3 (12Gb/s) (RAID 0,1,5,6,10) (Broadcom SAS3 3108) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2400/32(1Head)(32MB RAM)
|
| HD Bays
|
|
|
Drive Support
|
SATA (6Gb/s) / SAS3 (12Gb/s) - 4 Ports
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
On-Board Raid |
4 port SAS3 (12Gb/s) (RAID 0,1,5,6,10) (Broadcom SAS3 3108)
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SATA DOM |
|
|
|
|
SATA DOM 2 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
SAS/Add-in Card |
|
|
|
|
On-Board Graphics |
ASpeed AST2400/32(1Head)(32MB RAM)
|
|
|
|
On-Board LAN |
2 x Intel i350 1 x Gigabit
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
OS Version |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
|
|
|
