| Model
|
F628R3-FC0
|
System Ref
|
|
|
|
| System Features
|
Supermicro 4U quad node server solution model F628R3-FC0, featuring four hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 Series CPUs, 4x 3.5" Hot Swap HD/SSD bays and up to 1TB DDR4 RAM per node. Integrated Broadcom 3008 SAS3 12Gb/s Raid 0,1,10 per node. Each node can be online configured independently from each other with all multifaceted options available, with no restrictions, using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
| Chassis Model
|
4U CSE-F424AF-R1K28BP (F628R3-FC0)
|
| Description
|
4x 3.5" Hot Swap HD/SSD Bays per node.
Solution with 4x 1280W (1+1) 80plus (Platinum) 95% High-Efficiency PSUs. Power Rating Per Node 1280W.
|
| Height
|
4U, 177mm
|
|
Depth
|
737mm
|
| Width
|
448mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
External Optical Drive |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|

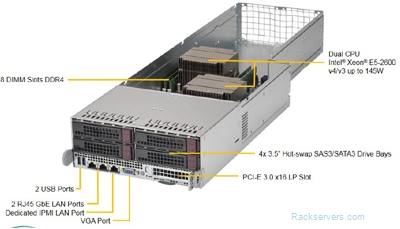

Supports dual Xeon E5-2600 v4 series CPUs, 4x 3.5" Hot Swap HD/SSDs (per node). 2x Intel i210 Gigabit LAN ports (per node). Intregrated 4 port Broadcom 3008 SAS3 12Gb/s Raid 0,1,10 & JBOD Mode controller per node.
|
| Node Chassis
|
F628R3-FC0 Node Module
|
|
Motherboard
|
Quad Node Dual Xeon E5-2600 v4 series (X10DRFF-C) 4x 12Gb/s SAS ports
|
| Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|
1x PCI-e (3.0) x16 (LP), 2x SATA DOM Ports, 2x USB 3.0 Rear, 1x VGA, 1x TPM Header
|
| CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
1024GB (8 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
| On-Board LAN
|
| 2 x Intel i210AT 1 x Gigabit |
|
|
On-board RAID
|
| 4 port SAS3 (12Gb/s) (RAID 0,1,10) (S/W LSI 3008) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2400/32(1Head)(32MB RAM)
|
| HD Bays
|
|
|
Drive Support
|
SATA (6Gb/s) / SAS3 (12Gb/s) - 4 Ports
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
On-Board Raid |
4 port SAS3 (12Gb/s) (RAID 0,1,10) (S/W LSI 3008)
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
SATA DOM |
|
|
|
|
SATA DOM 2 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
On-Board Graphics |
ASpeed AST2400/32(1Head)(32MB RAM)
|
|
|
|
On-Board LAN |
2 x Intel i210AT 1 x Gigabit
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
OS Version |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
|
|
|
