F628R3-RTBPTN+
|
System Ref
|
|
|
|
| System Features
|

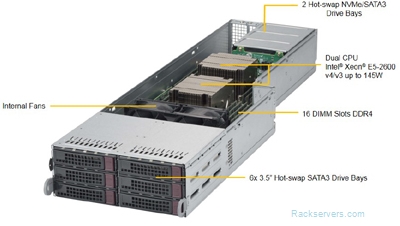

Supermicro 4U quad node server solution model F628R3-RTBPTN+, featuring four hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 Series CPUs, 8x 3.5" Hot Swap HD/SSD bays (6+2 Rear) (2x Rear bays as NVMe) and up to 2TB DDR4 RAM per node. Integrated dual 10Gb/E (10GBaseT) LAN ports per node. Each node can be online configured independently from each other with all multifaceted options available, with no restrictions, using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
| Chassis Model
|
4U CSE-F424AS-R1K28BP-NVMe (F628R3-RTBPTN+)
|
| Description
|
|
| Height
|
4U, 177mm
|
|
Depth
|
737mm
|
| Width
|
448mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
External Optical Drive |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|
Supports dual Xeon E5-2600 v4 series CPUs, 8x (6+2) 3.5" Hot Swap HD/SSDs (per node) (2x 3.5" rear bays as NVMe), 2x Intel X540 10GBaseT Gigabit LAN ports (per node).
|
| Node Chassis
|
F628R3-RTBPTN+ Node Module
|
|
Motherboard
|
Quad/Eight Node Dual Xeon E5-2600 v4 series (X10DRFR-NT)
|
| Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|
1 x PCI-e (3.0) x16 (LP), 1x PCI-e-(3.0) x8 (MicroLP), 2x USB 3.0 Rear, 1x TPM Header
|
| CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
2048GB (16 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
| On-Board LAN
|
| 2 x Intel X540 (10GBaseT) 1 x 10GbE |
|
|
On-board RAID
|
| 10 port SATA (6Gb/s)(RAID 0,1,5,10) (Intel C612) |
| 2 port NVMe (8Gb/s)(RAID N/A - JBOD Mode only) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2400/32(1Head)(32MB RAM)
|
| HD Bays
|
| 2 x 3.5"/2.5" NVMe Hot Swap |
| 6 x 3.5" Hot Swap |
|
|
Drive Support
|
SATA (6Gb/s) / SAS3 (12Gb/s) / NVMe (8Gb/s) - 8 Ports
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
On-Board Raid |
10 port SATA (6Gb/s)(RAID 0,1,5,10) (Intel C612), 2 port NVMe (8Gb/s)(RAID N/A - JBOD Mode only)
|
|
|
|
