| Model
|
F618R2-RC1+
|
System Ref
|
|
|
|
| System Features
|
Supermicro 4U eight node server solution model F618R2-RC1+, featuring eight hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 Series CPUs, 6x 2.5" Hot Swap HD/SSD bays and up to 2TB DDR4 RAM per node. Integrated Broadcom 3108 SAS3 12Gb/s Raid 0,1,5,6,10,50 per node. Each node can be online configured independently from each other with all multifaceted options available, with no restrictions, using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
| Chassis Model
|
4U CSE-F418BC-R2K04BP-NVMe (F618R2-RC1+)
|
| Description
|
6x 2.5" Hot Swap HD/SSD Bays per node (2x Bays as NVMe)
Solution with 4x 2000W (1+1) 80plus (Titanium) 96% High-Efficiency PSUs. Power Rating Per Node 2000W.
|
| Height
|
4U, 177mm
|
|
Depth
|
737mm
|
| Width
|
448mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
External Optical Drive |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
Qty
x
£660
|
7 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|

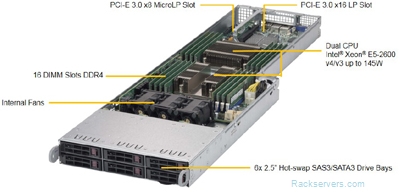

Supports dual Xeon E5-2600 v4 series CPUs, 6x 2.5" Hot Swap HD/SSDs (per node) (2x 2.5" bays as NVMe). 2x Intel i350-AM2 Gigabit LAN ports (per node). 6 port Broadcom 3108 SAS3 12Gb/s Raid 0,1,5,6,10,50 controller per node.
|
| Node Chassis
|
F618R2-RC1+ Node Module
|
|
Motherboard
|
Quad/Eight Node Dual Xeon E5-2600 v4 series (X10DRFR-N-SAS3)
|
| Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|
1 x PCI-e (3.0) x16 (LP), 1x PCI-e-(3.0) x8 (MicroLP), 2x USB 3.0 Rear, 1x TPM Header
|
| CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
2048GB (16 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
| On-Board LAN
|
| 2 x Intel i350 1 x Gigabit |
|
|
On-board RAID
|
| 6 port SAS3 (12Gb/s) (RAID 0,1,5,6,10,50) (B'Com 3108) |
| 2 port NVMe (PCI-e 3.0)(RAID N/A - JBOD Mode only) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2400/32(1Head)(32MB RAM)
|
| HD Bays
|
| 2 x 2.5" NVMe (+ Hybrid SATA/SAS) Hot Swap |
| 4 x 2.5" Hot Swap |
|
|
Drive Support
|
SATA (6Gb/s) / SAS3 (12Gb/s) / NVMe (PCI-e 3.0) - 6 Ports
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
On-Board Raid |
6 port SAS3 (12Gb/s) (RAID 0,1,5,6,10,50) (B'Com 3108), 2 port NVMe (PCI-e 3.0)(RAID N/A - JBOD Mode only)
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
SAS/Add-in Card |
|
|
|
|
On-Board Graphics |
ASpeed AST2400/32(1Head)(32MB RAM)
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
On-Board LAN |
2 x Intel i350 1 x Gigabit
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Server Manager |
|
|
|
|
TPM Module |
|
|
|
|
OS Version |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
|
|
|
