| Model
|
H273-Z81-AAW1
|
System Ref
|
|
|
|
| System Features
|

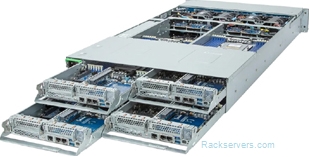

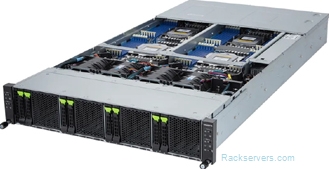

Gigabyte 2U quad node server solution model H274-Z81-AAW1 Rev 3.x, featuring four hot-pluggable system nodes, each supporting dual AMD EPYC 9005 Series CPUs, 2x 2.5" Hot Swap NVMe5/SATA/SAS3 bays and up to 3TB DDR5 RAM per node. Each node can be online configured independently from each other with all multifaceted options available, using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
| Chassis Model
|
2U Gigabyte Quad-Node H273-Z81-AAW1
|
| Description
|
2x 2.5" Hot Swap HD/SSD Bays per node.
Solution with Dual Redundant (Titanium 96%) 3000W PSU.
|
| Height
|
2U, 88mm
|
|
Depth
|
877mm
|
| Width
|
440mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|
Supports dual AMD EPYC 9005 series CPUs, 2x 2.5" Hot Swap HD/SSDs (per node). 2x PCI-e (5.0) x16 (LP) Expansion Slots, 1x PCI-e (5.0) x16 (OCP 3.0) for add-in Networking, 1x M.2 (PCI-e 4.0) Socket (2280/22110)
|
| Node Chassis
|
H273-Z81-AAW1 Node Module
|
|
Motherboard
|
Quad Node Dual AMD EPYC 9005 series (MZ83-HD0)
|
| Chipset
|
System-On-Chip
|
|
Expansion Slots & I/O
|
2x PCI-e (5.0) x16 (LP), 1x PCI-e (5.0) x16 (OCP 3.0), 1x M.2 (PCI-e 4.0) 2280/22110, 2x USB 3.2 Rear, 2x RJ45 Ports, 1x MLAN Port, 1x Mini-DP, 1x TPM Header
|
| CPU Socket Type
|
SP5 LGA
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
3072GB (24 x 128GB)
|
|
Ram Slot Type
|
DDR5 (Use in pairs, triples, quads, sixes, eights, Linked to processor)
|
| On-Board LAN
|
| 1 x Intel i350-AM2 2 x Gigabit |
|
|
On-board RAID
|
| 2 port SATA (6Gb/s)/NVMe (PCI-e 5.0)(RAID N/A - JBOD Mode only) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2600 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2600/64(1Head)(64MB RAM)
|
| HD Bays
|
| 2 x 2.5" Hot Swap (2 bays NVMe ready) |
|
|
Drive Support
|
SATA (6Gb/s) / NVMe (PCI-e 5.0) - 2 Ports
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
On-Board Raid |
2 port SATA (6Gb/s)/NVMe (PCI-e 5.0)(RAID N/A - JBOD Mode only)
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
On-Board Graphics |
ASpeed AST2600/64(1Head)(64MB RAM)
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
On-Board LAN |
1 x Intel i350-AM2 2 x Gigabit
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
Server Manager |
|
|
|
|
TPM Module |
|
|
|
|
OS Version |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
|
|
|
