| Model
|
6028TP-HC1R-SIOM
|
System Ref
|
|
|
|
| System Features
|
Supermicro 2U quad node server solution, featuring four hot-pluggable system nodes, each supporting dual Xeon E5-2600 v4 CPUs. Solution offers fully independent Supermicro SIOM LAN adapter options per node. Integrated 6 port Broadcom 3108 12Gb/s SAS3 Raid controllers per node. Each node can be online configured independently from each other with all multifaceted options available, with no restrictions, using the Multinode System Node configurator engines. System Nodes are listed below.
|
| Chassis Model
|
2U CSE-827HQ+-R2K04B (6028TP-HC1R-SIOM)
|
| Description
|
3x 3.5" Hot Swap HD/SSD Bays per node.
Solution with Dual Redundant (Titanium 96%) 2000W PSU.
|
| Height
|
2U, 88mm
|
|
Depth
|
730mm
|
| Width
|
438mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
External Optical Drive |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|
Supports dual Xeon E5-2600 v4 series CPUs, 3x 3.5" Hot Swap HD/SSDs (per node). Each node comes with 1x SIOM LAN adapter by default (All LAN types are selectable for full network flexibility per node).
|
| Node Chassis
|
6028TP-HC1R-SIOM Node Module
|
|
Motherboard
|
Quad Node Dual Xeon E5-2600 v4 series (X10DRT-PS) 3x 12Gb/s SAS ports
|
| Chipset
|
Intel C612
|
|
Expansion Slots & I/O
|

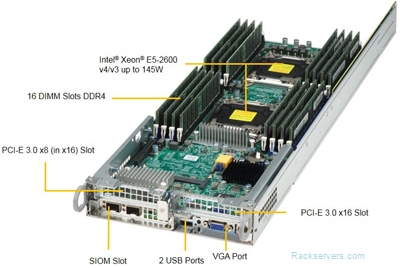

1x PCI-e (3.0) x16 (LP), 1x PCI-e (3.0) x8 (LP), 1x SIOM LAN Card support, 1x SATA DOM Port, 2x USB 3.0 Rear, 1x VGA
|
| CPU Socket Type
|
LGA-2011
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
2048GB (16 x 128GB)
|
|
Ram Slot Type
|
DDR4 (Use in pairs, quads, Linked to processor)
|
| On-Board LAN
|
|
|
On-board RAID
|
| 3 port SAS3 (12Gb/s) /SATA (6Gb/s)(RAID 0,1,5) (Broadcom H/W 3108 SAS3) |
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2400 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
