| Model
|
H274-S60-AAW1
|
System Ref
|
|
|
|
| System Features
|

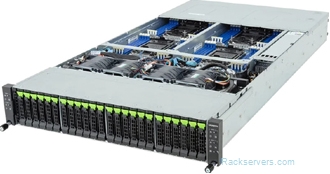

Gigabyte 2U quad node server solution model H274-S60-AAW1, featuring four hot-pluggable system nodes, each supporting dual Xeon-6 6500/6700 Series CPUs, 6x 2.5" Hot Swap NVMe5/SATA/SAS3 bays and up to 4TB DDR5 RAM per node. Each node can be online configured independently from each other with all multifaceted options available, using the Multinode System Node configurator engines. System Nodes are listed below.
This solution ideal for high-end enterprise, high performance computing (HPC) clusters, Data centres and cloud computing environments.
|
| Chassis Model
|
2U Gigabyte Quad-Node H274-S60-AAW1
|
| Description
|
24x 2.5" Hot Swap NVMe5/SATA/SAS4 Bays per node.
Solution with Dual Redundant (Titanium 96%) 3000W PSU.
|
| Height
|
2U, 88mm
|
|
Depth
|
877mm
|
| Width
|
440mm
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Monitor |
|
|
|
|
Mouse |
|
|
|
|
Keyboard |
|
|
|
|
|
Telescopic Rail Kit included
|
|
|
|
Maintenance inc. all Nodes |
|
|
|
|
|
|
3 x Unconfigured Nodes Or use the Quantity Multiplier above
|
|
| Node General Info
|
|
| Node Chassis
|
H274-S60-AAW1 Node Module
|
|
Motherboard
|
Quad Node Dual Xeon-6 6500/6700 series (MS64-HD0) - 24
|
| Chipset
|
System-On-Chip
|
|
Expansion Slots & I/O
|
1x PCI-e (5.0) x16 (LP), 1x OCP 3.0 x16, 2x USB 3.2 Rear, 1x Mini-DP, 1x TPM Header
|
| CPU Socket Type
|
FCLGA4710
|
|
Maximum CPU
|
2
|
| Maximum Ram
|
4096GB (16 x 256GB)
|
|
Ram Slot Type
|
DDR5 (Use in pairs, quads, eights, Linked to processor)
|
| On-Board LAN
|
|
|
On-board RAID
|
|
| Onboard Management
|
Per Node: Integrated IPMI 2.0 with Dedicated LAN (ASpeed AST2600 BMC). Supports virtual media over LAN and KVM over LAN.
|
|
On-board Graphics
|
ASpeed AST2600/64(1Head)(64MB RAM)
|
| HD Bays
|
| 6 x 2.5" NVMe (+ Hybrid SATA/SAS) Hot Swap |
|
|
Drive Support
|
SATA (6Gb/s) / SAS3 (12Gb/s) / NVMe (PCI-e 4.0) / NVMe (PCI-e 5.0) - 6 Ports
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
Raid Controller |
|
|
|
|
Raid Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
On-Board Graphics |
ASpeed AST2600/64(1Head)(64MB RAM)
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
OS Version |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
|
|
|
